Axles

Galvanized 1.5" Square Trailer Axle - 1,800 lbs. Capacity with 1" Spindles - 57.5" Hub Face

More Views

$110.00

Be the first to review this product

Availability: In stock

Item # 62GA

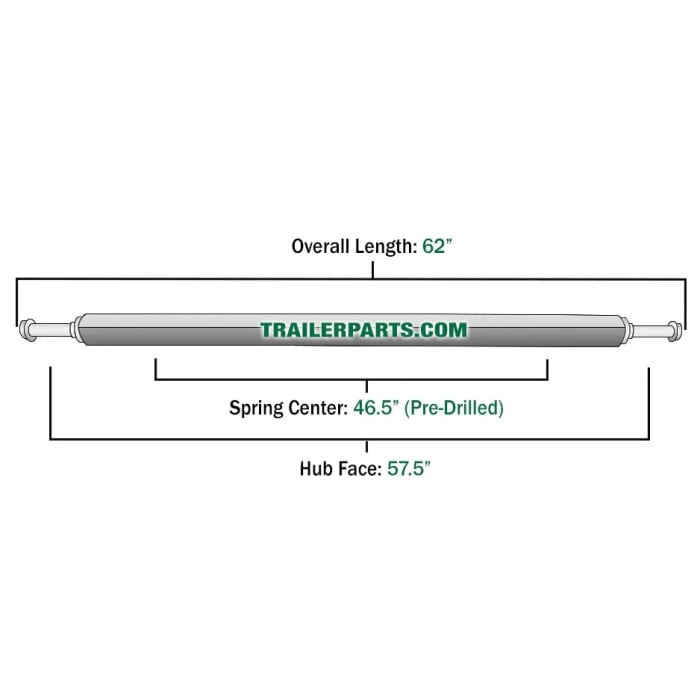

Approximate Overall Length: 62"
Hub Face: 57 1/2"
Capacity: 1,800 lbs.
Brand: Tie Down Engineering
Manufacturer Product #: 49501

Additional Information

Product Features

Details

Perfect for smaller marine applications, the 62GA, Tie Down Engineering/Dexter part number 49501, features a 2,000 pound capacity and a hot dipped galvanized finish. This finish will allow the axle beam to last longer than traditional painted, powder coated, or e-coated axles with more resistance against water and snow environments. The axle has a pre-drilled 5/16" drain hole to allow water to purge itself from the inner tubing. The spring center holes are drilled by the manufacturer at 46.5" center to center.



Product Features:

  • Hot dipped galvanized beam to combat corrosion
  • Galvanized axles will last much longer than painted ones and are perfect for marine applications
  • Features a stainless steel wear sleeve on either spindle
  • Straight axle design with no camber
  • Includes 2 castellated nuts, 2 washers, and 2 cotter pins
  • This axle should not be used with wheels exceeding 12"
  • Hubs sold separately
  • Flangeless



Product Specifications:

  • Capacity: 1,800 lbs.
  • Hub Face Measurement: 57.50"
  • Overall Length: 62"
  • Beam: 1.5" x 1.5" Square
  • Spring Center: Pre-drilled at 46.5" center to center
  • Spindle: 1" straight



Hardware Information:

  • Inner/Outer Bearings (sold separately): 44643 (1" inner diameter)
  • Races (sold separately): 44610
  • Grease Seal Inner Diameter: 1.25"



Tie Down Engineering/Dexter Marine of Georgia Part Number: 49501

Reviews

No Customer Reviews

Be the first to review this product.

Write Your Own Review

You're reviewing: Galvanized 1.5" Square Trailer Axle - 1,800 lbs. Capacity with 1" Spindles - 57.5" Hub Face

How do you rate this product? *


1 1 star
2 2 star
3 3 star
4 4 star
5 5 star
Rating

PDF Downloads

  • 62GA - Spec Sheet
