Galvanized 1.5" Square Trailer Axle - 2,000 lbs. Capacity with 1 1/16" Spindles - 56.75" Hub Face

In stock

SKU 61GA
Price $183.66
Item 61GA
Approximate Overall Length 61"
Hub Face 56 3/4"
Capacity 2,000 lbs.
Brand Tie Down Engineering
Manufacturer Product # 50028

Description / Galvanized 1.5" Square Trailer Axle - 2,000 lbs. Capacity with 1 1/16" Spindles - 56.75" Hub Face

The 61GA, Tie Down Engineering/Dexter part number 50028, is a light duty square axle used for small boats, jet skis, and snowmobiles. The galvanized coating creates a barrier from corrosion and rust, giving it a longer lifespan and use. This axle features a pre-drilled 5/16" drain hole to purge water from the inner tubing. The spring centers are pre-drilled at 45" center to center by the manufacturer.



Product Features:

  • Hot dipped galvanized beam to combat corrosion
  • Galvanized axles will last much longer than painted ones and are perfect for marine applications
  • Features a stainless steel wear sleeve on either spindle
  • Straight axle design with no camber
  • Used for leaf spring suspension systems
  • Includes 2 castellated nuts, 2 washers, and 2 cotter pins
  • Pre-drilled 5/16" drain hole
  • This axle should not be used with wheels exceeding 12"
  • Hubs sold separately
  • Flangeless

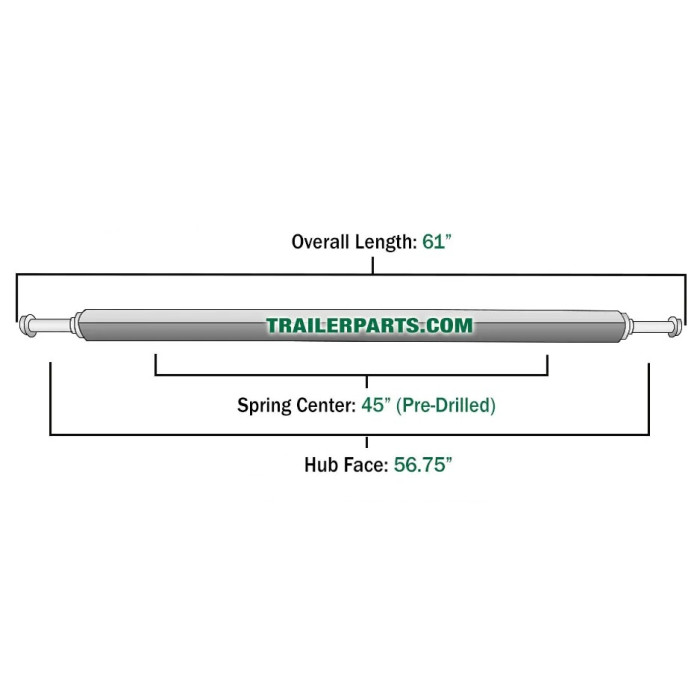

Product Specifications:

  • Capacity: 2,000 lbs.
  • Hub Face Measurement: 56.75"
  • Overall Length: 61"
  • Beam: 1.5" x 1.5" Square
  • Spring Center: Pre-drilled at 45" center to center
  • Spindle: 1 1/16" straight



Hardware Information:

  • Inner/Outer Bearings (sold separately): 44649 (1 1/16" inner diameter)
  • Races (sold separately): 44610
  • Grease Seal Inner Diameter: 1.25"



Tie Down Engineering/Dexter Marine of Georgia Part Number: 50028
