Actual product may vary from the photo, but the functionality is the same.

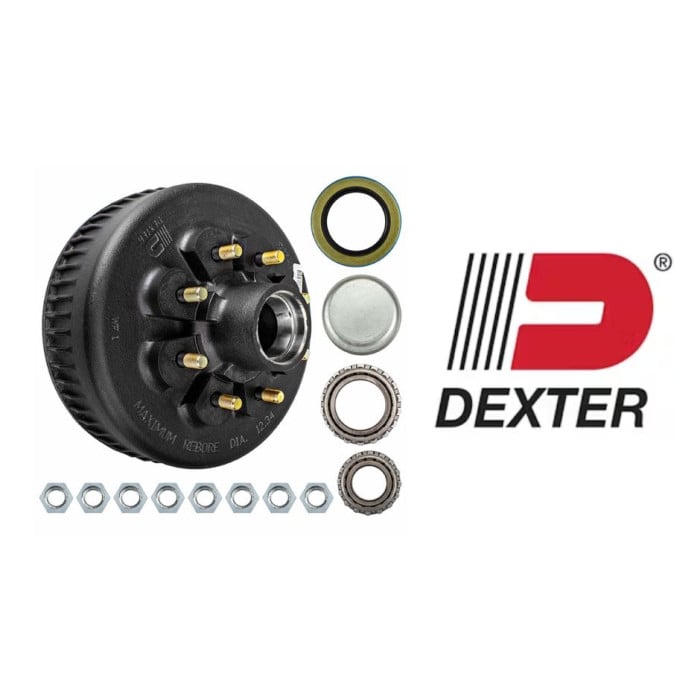

12 1/4" x 3 3/8" Brake Drum - 8 on 6 1/2" with 25580 x 02475 Bearings - 9/16" Studs

In stock

SKU 8-285-94
Price $436.26
Drum Size 12 1/4" x 3 3/8"
Number of Bolts 8 Bolt
Bolt Pattern 8 on 6 1/2"
Inner Bearing 1 3/4"
Outer Bearing 1 1/4"
Bolt Size 9/16"
Manufacturer / Brand Dexter
Manufacturer Product # 008-285-94
  $436.26


Description / 12 1/4" x 3 3/8" Brake Drum - 8 on 6 1/2" with 25580 x 02475 Bearings - 9/16" Studs

Product Features:

  • Applicable with 12 1/4" x 3 3/8" trailer brakes
  • Durable, cast iron construction
  • Integral, one-piece hub and drum assembly
  • Pre-pressed studs and races
  • Bearings, grease cap, grease seal, and lug nuts included upon purchase
  • Bearing grease sold separately
  • Dome shaped grease cap
  • Double lipped grease seal provides a snug fit on the axle spindle to deter debris from entering the drum
  • Designed for 8,000 lbs. axles with #42 flared spindles
  • Drum manufactured in USA
  •

    Product Specifications:

  • Applicable Brake Dimensions: 12 1/4" x 3 3/8"
  • Bolt Pattern: 8 on 6 1/2"
  • Stud Diameter: 9/16"
  • Individual Drum Capacity: 4,000 lbs.
  • Wheel Size: 16" - 17 1/2"
  •

    Hardware Specifications:

  • Inner Bearing: 1 3/4" (25580)
  • Outer Bearing: 1 1/4" (02475)
  • Grease Seal Inner Diameter: 2.25"
  • Grease Seal Outer Diameter: 3.37"
  • Grease Cap Diameter: 2.72"
  • Lug Nuts: 9/16"-18
  •

    Includes:

  • (1) 8 Bolt Drum
  • (1) Inner Bearing
  • (1) Outer Bearing
  • (1) Grease Seal
  • (1) Grease Cap
  • (8) Lug Nuts
  •

    Dexter Axle Part Number: 8-285-94 (8-285-11 Drum Only)

    Related Products

    Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
    1 lb. Can of Bearing Grease #2 Red Lithium
    $13.74

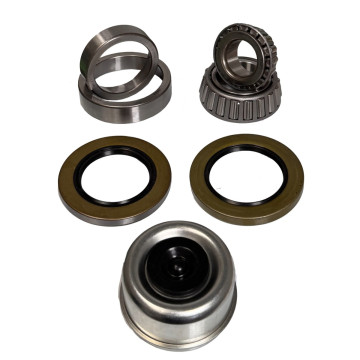

    Trailer Bearing Kit - 25580/02475 - For Dexter Brake Drum 8-285-94
