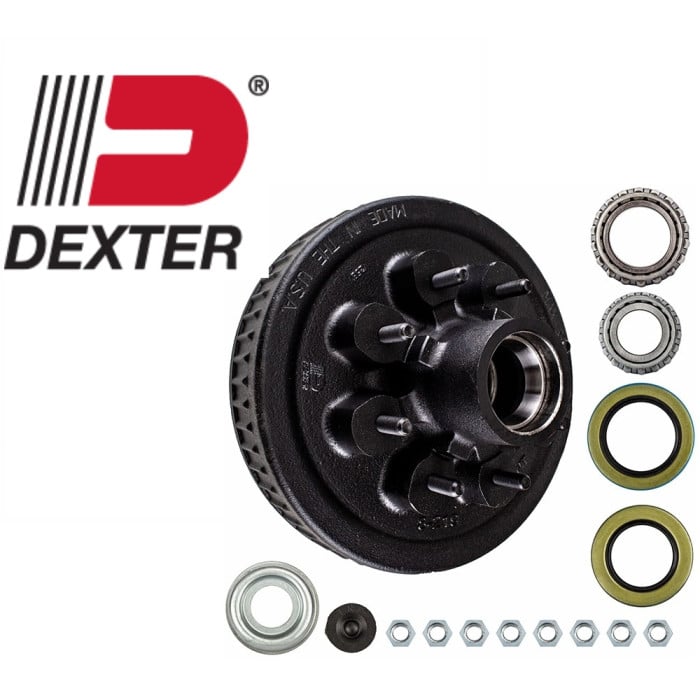

Dexter 12" x 2" Brake Drum - 8 on 6 1/2" with 1 3/4" x 1 1/4" Bearings (25580 x 14125A) - 1/2" Studs

Product Features:

• Can be used with electric or hydraulic drum brake assemblies
• Durable, cast iron construction
• Integral hub and drum
• Pre-pressed races and studs
• Bearings, grease seals, EZ Lube grease cap, and lug nuts included with purchase
• EZ Lube grease cap comes with a removable rubber plug
• Convenient grease cap design allows for simple re-greasing without having to remove and replace the cap as long as the axle has grease zerks on the spindles
• Double lipped, spring loaded grease seals
• Commonly used on 5,200 lbs. to 7,000 lbs. axles
• Fits 12" brakes
• Grease sold separately
• Drum manufactured in the USA

Product Specifications:

• Applicable Brake Dimensions: 12" x 2"
• Bolt Pattern: 8 on 6 1/2"
• Stud Diameter: 1/2"
• Individual Drum Capacity: 3,500 lbs.
• Wheel Size: 16" - 17 1/2"

Hardware Specifications:

• Inner Bearing: 25580 (1 3/4")
• Outer Bearing: 14125A (1 1/4")
• Grease Seal Inner Diameter: 2.12" & 2.25"
• Grease Seal Outer Diameter: 3.37"
• Grease Cap: 2.72"
• Lug Nuts: 1/2"-20

NOTE: This drum includes 2 grease seals with different inner diameters to accommodate most common axle spindles. Check which grease seal will fit the axle before installing into drum.

Includes:

• (1) 8 Bolt Drum
• (1) Inner Bearing
• (1) Outer Bearing
• (2) Grease Seals
• (1) EZ Lube Grease Cap with Rubber Plug
• (8) Lug Nuts

Dexter Axle Part Number: 8-219-04
