Brake Drum - 12" x 2" - 6 on 5 1/2"

Compatible w/ 008-201-09

In stock

SKU F65512D-IMP
Price $132.78
Drum Size 12" x 2"
Number of Bolts 6 Bolt
Bolt Pattern 6 on 5 1/2"
Inner Bearing 1 3/4"
Outer Bearing 1 1/4"
Bolt Size 1/2"
Manufacturer / Brand UCF - The Universal Group LLC
Manufacturer Product # BD-126550-HD
  $132.78


Description / Brake Drum - 12" x 2" - 6 on 5 1/2"

Product Features:

  • Can be used with 12" electric or hydraulic drum brake assemblies
  • Iron construction with a black painted finish
  • Pre-pressed races and studs
  • Bearings, grease seals, EZ lube grease cap, and lug nuts included with purchase
  • EZ lub grease cap comes with a removable rubber plug that easily by taken off to allow access to axles with zerk fittings, making re-greasing simple and efficient
  • With the convenient grease cap design there is no longer a need to remove and replace the cap
  • Flange rubber plug provides a tight fit to prevent debris from entering the drum
  • Double lipped, spring loaded grease seals
  • Typically used on 5,200 - 7,000 lbs. axles
  • Fits 12" brakes
  • Grease sold separately

    •

    Product Specifications:

  • Applicable Brake Dimensions: 12" x 2"
  • Bolt Pattern: 6 on 5 1/2"
  • Stud Diameter: 1/2"
  • Wheel Size: 14 1/2" - 16 1/2"
  • Individual Drum Capacity: 2,600 lbs.

    •

    Hardware Specifications:

  • Inner Bearing: 25580 (1 3/4")
  • Outer Bearing: 15123 (1 1/4")
  • Grease Seal Inner Diameters: 2.12" & 2.25"
  • Grease Seal Outer Diameter: 3.37"
  • Grease Cap: 2.45"
  • Lug Nuts: 1/2"-20

    •

    NOTE: This drum includes 2 grease seals with different inner diameters to accommodate most common axle spindles for this drum. Check which grease seal will fit the axle before installing into the drum.

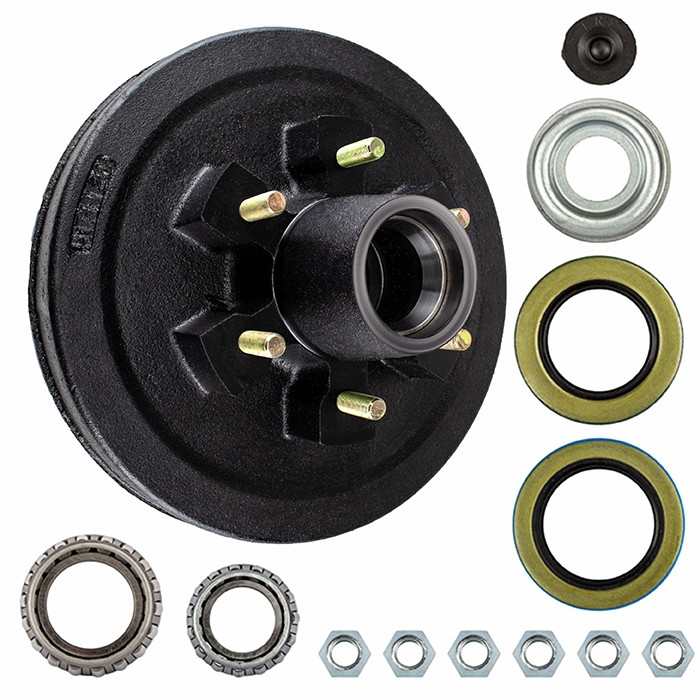

    Includes:

  • (1) 6 Bolt Drum
  • (1) Inner Bearing
  • (1) Outer Bearing
  • (2) Grease Seals
  • (1) EZ Lube Grease Cap with Rubber Plug
  • (6) Lug Nuts

    •

    UCF - The Universal Group LLC Part Number: BD-126550-HD
