Galvanized 2" Square Trailer Axle - 2,000 lbs. Capacity with 1 1/16" Spindles - 65" Hub Face

In stock

SKU F70G
Price $202.54
Item F70G
Approximate Overall Length 70"
Hub Face 65"
Capacity 2,000 lbs.
Brand Tie Down Engineering
Manufacturer Product # 49542

Description / Galvanized 2" Square Trailer Axle - 2,000 lbs. Capacity with 1 1/16" Spindles - 65" Hub Face

The F70G (Tie Down Engineering/Dexter Marine part number 49542) is a 2" x 2" galvanized trailer axle designed for marine applications. A 5/16" drain hole is pre-drilled by the manufacturer to purge water from the inner tube of the axle. Spring holes are not pre-drilled. To prevent from having to drill into the axle, we recommend using spring seats and staying within the manufacturers range for best results.



Product Features:

  • Hot dipped galvanized steel beam to combat corrosion
  • Galvanized axles will last much longer than painted ones and are perfect for marine applications
  • Features a stainless steel wear sleeve on either spindle
  • Slight camber present in the welds of the spindles
  • Includes 2 castellated nuts, 2 washers, and 2 cotter pins
  • EZ Lube spindle design features a zerk fitting at the ends of both spindles for easy bearing lubrication
  • Hubs sold separately
  • Flange-less
  • Pre-drilled 5/16" drain hole
  • Should not be used with wheels exceeding 13"

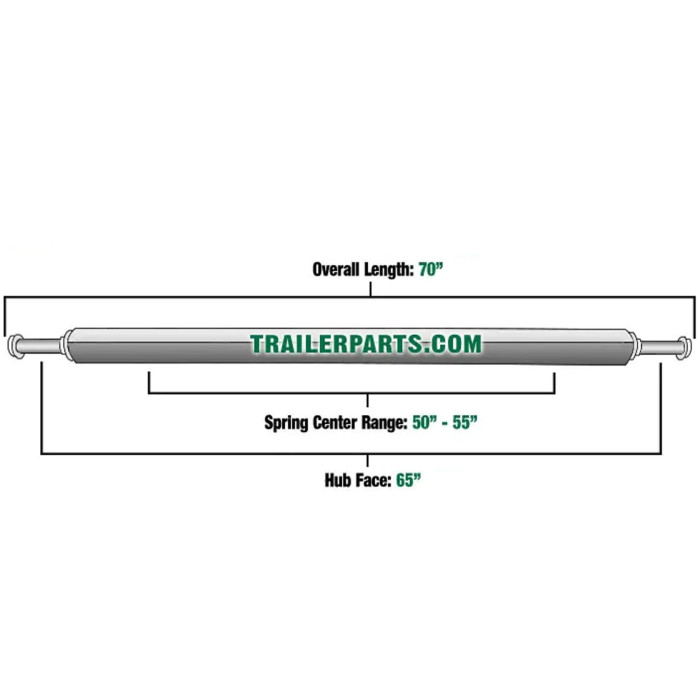

Product Specifications:

  • Capacity: 2,000 lbs.
  • Hub Face Measurement: 65"
  • Overall Length: 70"
  • Beam: 2" x 2" Square
  • Spring Center Range: 50" - 55"
  • Spindle: 1 1/16" straight



Hardware Information:

  • Inner/Outer Bearing (sold separately): 44649 (1 1/16" inner dimension)
  • Races (sold separately): 44610
  • Grease Seal Inner Diameter: 1.25"



NOTE: This axle does not come pre-drilled for the springs to sit. It is recommended to use seats and to stay within the manufacturers spring center range to achieve the full capacity. Going inside or outside of the recommended spring center range may cause the strength of the axle to decrease. Drilled axles cannot be returned for any reason.



Tie Down Engineering/Dexter Marine of Georgia Part Number: 49542
