The F74G by Tie Down Engineering/Dexter Marine (manufacturer part number 49543) is a small capacity axle perfect for marine applications. The galvanized finish creates a barrier from salt and fresh water to protect the steel from corrosion and rust. The spindles feature zerk fittings for simple and efficient bearing re-greasing without having to take the hubs off. This is best used with easy lube caps with rubber plugs.

Product Features:

• Hot dipped galvanized steel beam to combat corrosion
• Galvanized axles will last much longer than painted ones and are perfect for marine applications
• Features a stainless steel wear sleeve on either spindle
• Slight camber present in the welds of the spindles
• Includes 2 castellated nuts, 2 washers, and 2 cotter pins
• EZ Lube spindle design features a zerk fitting at the ends of both spindles for easy bearing lubrication
• Hubs sold separately
• Flange-less
• Pre-drilled 5/16" drain hole
• Should not be used with wheels exceeding 13"

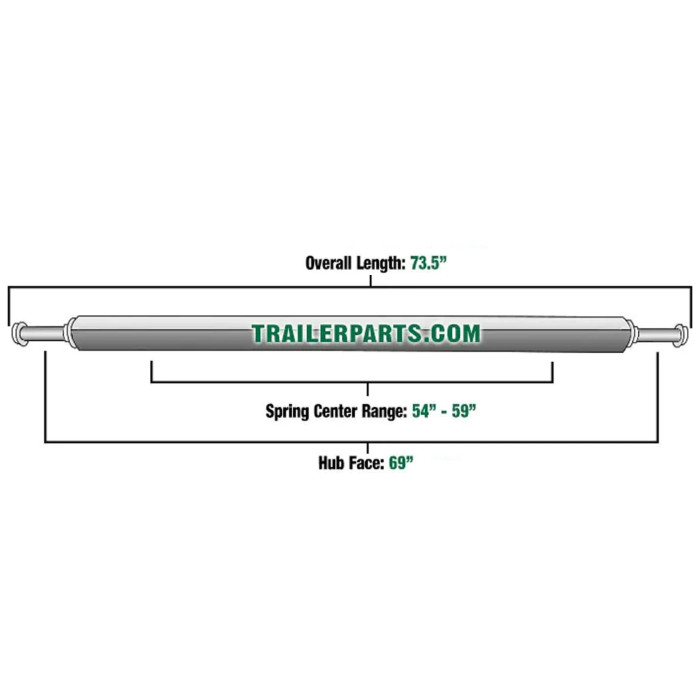

Product Specifications:

• Capacity: 2,000 lbs.
• Hub Face Measurement: 69"
• Overall Length: 73.5"
• Beam: 2" x 2" Square
• Spring Center Range: 54" - 59"
• Spindle: 1 1/16" straight

Hardware Information:

• Inner/Outer Bearing (sold separately): 44649 (1 1/16" inner dimension)
• Races (sold separately): 44610
• Grease Seal Inner Diameter: 1.25"

NOTE: This axle does not come pre-drilled for the springs to sit. It is recommended to use seats and to stay within the manufacturers spring center range to achieve the full capacity. Going inside or outside of the recommended spring center range may cause the strength of the axle to decrease. Drilled axles cannot be returned for any reason.

Tie Down Engineering/Dexter Marine of Georgia Part Number: 49543
