Galvanized 2" Square Trailer Axle - 2,000 lbs. Capacity with 1 1/16" Spindles - 87" Hub Face

In stock

SKU F92G
Price $226.00
Item F92G
Approximate Overall Length 91 1/2"
Hub Face 87"
Capacity 2,000 lbs.
Brand Tie Down Engineering
Manufacturer Product # 49547

Description / Galvanized 2" Square Trailer Axle - 2,000 lbs. Capacity with 1 1/16" Spindles - 87" Hub Face

The F92G axle by Tie Down Engineering/Dexter Marine (manufacturer part number 49547) is a small capacity axle with a galvanized finish and stainless wear rings pressed on the spindles. A pre-drilled 5/16" drain hole purges water from the inner beam after submersion. The lube spindles features zerk fittings that will allow simple and efficient bearing packing and re-packing when used with a grease gun and EZ Lube grease caps.



Product Features:

  • Hot dipped galvanized steel beam to combat corrosion
  • Galvanized axles will last much longer than painted ones and are perfect for marine applications
  • Features a stainless steel wear sleeve on either spindle
  • Slight camber present in the welds of the spindles
  • Includes 2 castellated nuts, 2 washers, and 2 cotter pins
  • EZ Lube spindle design features a zerk fitting at the ends of both spindles for easy bearing lubrication
  • Hubs sold separately
  • Flange-less
  • Pre-drilled 5/16" drain hole
  • Should not be used with wheels exceeding 13"

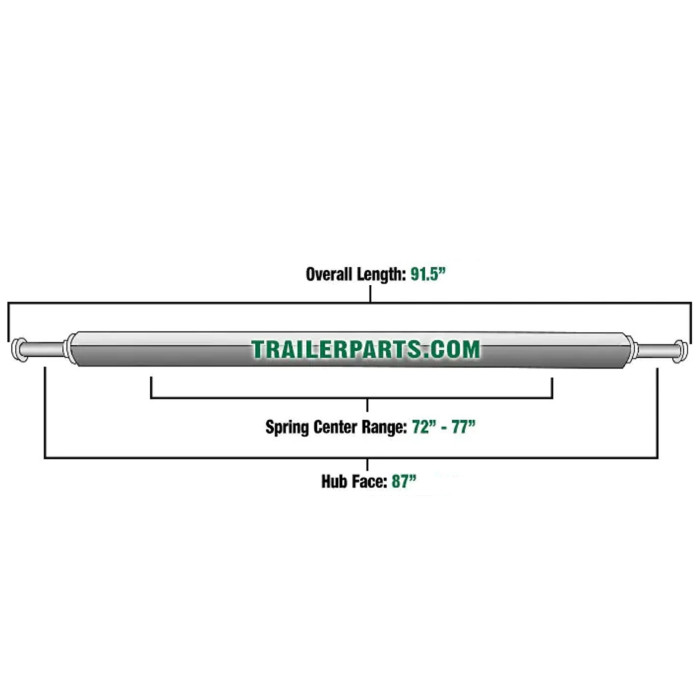

Product Specifications:

  • Capacity: 2,000 lbs.
  • Hub Face Measurement: 87"
  • Overall Length: 91.5"
  • Beam: 2" x 2" Square
  • Spring Center Range: 72" - 77"
  • Spindle: 1 1/16" straight



Hardware Information:

  • Inner/Outer Bearing (sold separately): 44649 (1 1/16" inner dimension)
  • Races (sold separately): 44610
  • Grease Seal Inner Diameter: 1.25"



NOTE: This axle does not come pre-drilled for the springs to sit. It is recommended to use seats and to stay within the manufacturers spring center range to achieve the full capacity. Going inside or outside of the recommended spring center range may cause the strength of the axle to decrease. Drilled axles cannot be returned for any reason.



Tie Down Engineering/Dexter Marine of Georgia Part Number: 49547

Related Products

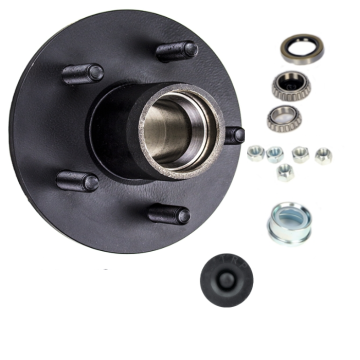

5 Bolt on 4 1/2" Trailer Hub with 1 1/16" Bearings (44649)
