Actual product may vary from the photo, but the functionality is the same.

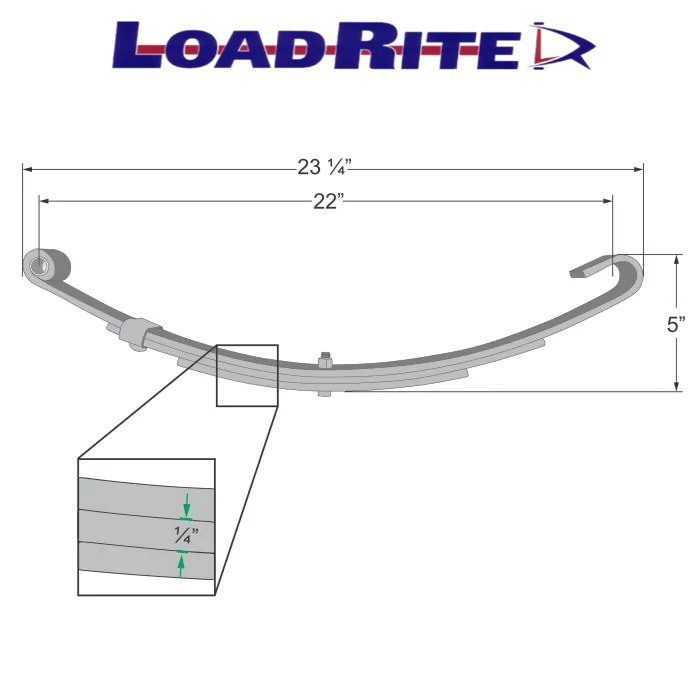

Trailer Leaf Spring - 3 Leaves - 1,000 lbs. Capacity

Similar to 2073.04 / 26134HD

In stock

SKU US-2011
Price $55.25
Spring Capacity 1,000 lbs.
Number of Leaves 3
Spring Width 1 3/4"
Overall Length 23 1/4"
Center of Eye to Contact Point 22"
  $55.25


Description / Trailer Leaf Spring - 3 Leaves - 1,000 lbs. Capacity

Product Features and Specifications

  • 1,000 lbs single spring capacity
  • Overall Length: 23 1/4”
  • Center of Eye to Contact Point: 22”
  • Spring Width: 1 3/4”
  • 9/16" I.D. nylon bushing included
  • Durable, high-strength steel
  • Sold individually
