This open eye--also known as "c-hook" or "hook-up"--leaf spring is constructed of high quality steel leaves bolted and banded tightly together at an arch. The open end of the spring is made to hook around the bolt in a suspension system. Trailerparts.com measures these springs from the center of the closed eye to the center of the open eye. When measuring old springs it is important to know that after long time use springs may become 'stretched' or 'flattened' due to the constant flex of the ride. Measurments of your old spring compared to a new one may vary slightly.

Product features and specifications:

• 2,350 lbs single spring capacity

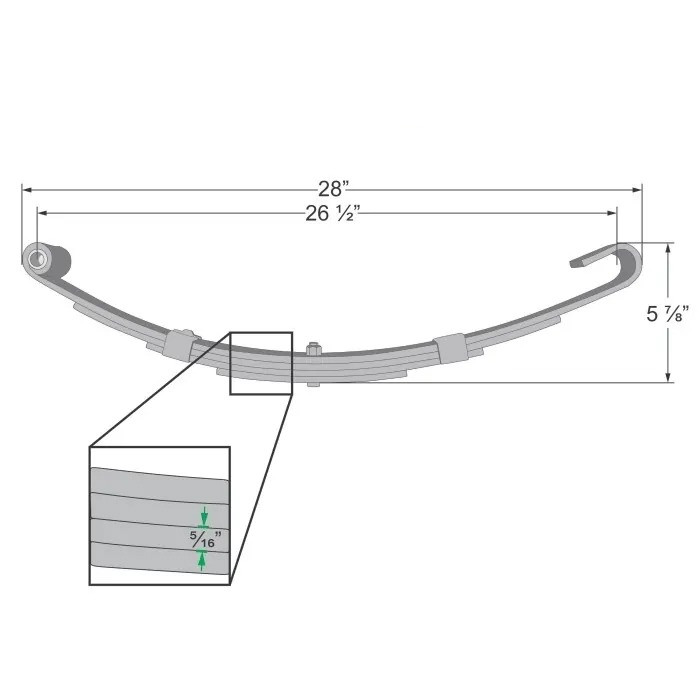

• Measures 26 1/2" from contact point to contact point
• 9/16" nylon bushing included in the closed eye
• High quality, durable steel construction
• 1 3/4" spring width
• Sold individually

The Universal Group part number: UNA-264

Simmilar to industry numbers: SO-C4, C-4, CO-C4

Shipping weight: 13.75 lbs
