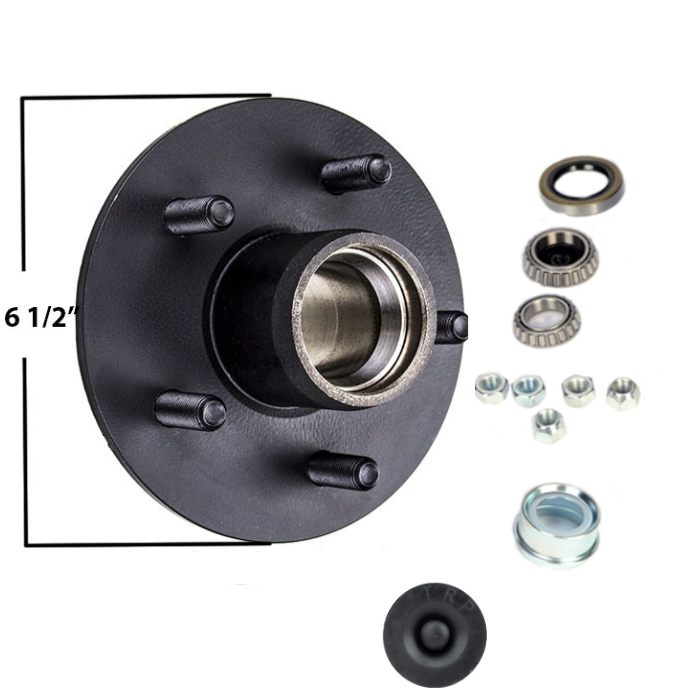

The 15513B (manufacturer part number 8-258-05) provides the quality assurance of the Dexter brand. The 6 1/2" wide flange is designed for mounting 13" and greater wheels with a standard 5 on 4 1/2" bolt pattern.

Product Features:

• Durable, cast iron construction
• Black powder coat finish for rust resistance
• Pre-pressed races and studs
• Fits on small capacity axles with 1" straight spindles
• Large flange allows larger wheels to be mounted
• Bearings, grease seal, grease cap, and lug nuts included
• Dome shaped grease cap
• Double lipped grease seal for a tight spindle fit

NOTE: This hub will not accept 8" wheels.

Product Specifications:

• Axle Capacity: 2,000 lbs.
• Bolt Pattern: 5 on 4 1/2"
• Hub Height: 4 1/8"
• Flange Diameter: 6 1/2"
• Inner/Outer Bearing (included): L44643 (1")
• Grease Seal Inner Diameter: 1.25"
• Grease Cap Size: 1.98"
• Wheel Size: 13" and up

Includes:

• (1) 5 Bolt Hub
• (1) Inner Bearing
• (1) Outer Bearing
• (1) Grease Seal
• (1) Grease Cap
• (5) Lug Nuts

Dexter Axle Part Number: 8-258-05
