DeeMaxx 12" Integral Hub/Rotor Single Axle Disc Brake Kit - 6 on 5 1/2" - Stainless Steel Calipers

In stock

SKU F3870
Price $857.65
Number of Bolts 6
Brake Manufacturer DeeMaxx
Manufacturer Product # DBI-6K-MAXX-SS
  $857.65


Description / DeeMaxx 12" Integral Hub/Rotor Single Axle Disc Brake Kit - 6 on 5 1/2" - Stainless Steel Calipers

Product Features

  • Integral hub and rotor design combines the hub and rotor into one balanced unit
  • MAXX-coated hub/rotors and mounting brackets provide corrosion resistance for fresh and saltwater applications
  • Stainless steel calipers provide enhanced corrosion resistance in marine environments
  • Stainless steel brake pads offer additional corrosion protection
  • Vented rotors with additional hub ventilation holes help dissipate heat
  • Pre-pressed bearing races and wheel studs
  • Designed for most 5,200–6,000 lb. axles with compatible 5-bolt brake flanges
  • Compatible with electric-over-hydraulic brake actuators
  • MAXX coating passed over 1,008 hours of salt spray testing without rust
  • Bearings, grease seals, grease caps, and mounting hardware sold separately
    •

    Product Specifications

  • Rotor Diameter: 12"
  • Rotor Type: Vented integral hub and rotor
  • Bearings (sold separately): Inner - 25580 (1-3/4"), Outer - 15123 (1-1/4")
  • Caliper: Stainless steel hydraulic caliper
  • Brake Pads: Stainless steel
  • Axle Rating: 5,200–6,000 lbs.
  • Flange Mounting Pattern: 5-Hole
  • Stud Diameter: 1/2"
  • Bolt Pattern: 6 on 5-1/2"
  • Wheel Size: 15" and larger; verify wheel clearance
  • Hub/Rotor Coating: MAXX
  • Mounting Bracket Coating: MAXX
  • Caliper Material: Stainless steel
  • Brake Type: Hydraulic disc brakes
  • Caliper Bolt Torque Spec: 50ft-lb
    •

    Includes:

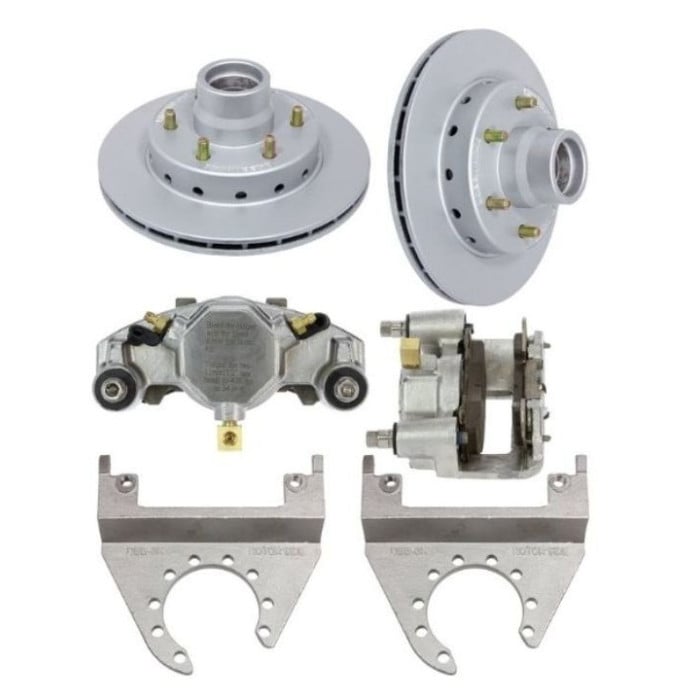

  • (2) MAXX-coated 12" integral hub/rotor assemblies
  • (2) Stainless steel hydraulic calipers with stainless steel brake pads
  • (4) Caliper slider pins
  • (2) MAXX-coated caliper mounting brackets
    •

    Note: This kit contains components for one complete axle. Bearings, grease seals, grease caps, brake lines, actuator, and mounting hardware are sold separately. Verify axle rating, brake flange pattern, bearing sizes, and wheel clearance before ordering. Use appropriate high-temperature marine bearing grease.
