DeeMaxx 10" Integral Hub/Rotor Disc Brake Assembly - 5 on 4 1/2" - Maxx Coating

In stock

SKU F3873
Price $307.03
Number of Bolts 5
Brake Manufacturer DeeMaxx
Manufacturer Product # 1/DBI-3.5K-MAXX-KIT
  $307.03


Description / DeeMaxx 10" Integral Hub/Rotor Disc Brake Assembly - 5 on 4 1/2" - Maxx Coating

This DeeMaxx disc brake kit is designed to outfit one wheel end with a hydraulic disc brake system. The integrated hub and vented rotor design helps dissipate heat during braking, while the MAXX coating provides enhanced corrosion resistance in freshwater and saltwater marine environments.



Product Features

  • Integrated hub and vented rotor design
  • MAXX coating provides enhanced protection against rust and corrosion in marine environments
  • MAXX-coated caliper and mounting bracket for added corrosion resistance
  • Ceramic brake pads for reliable braking performance
  • Vented rotor design helps dissipate heat during braking
  • Designed for compatible 3,500 lb. trailer axles
  • Five-lug hub design fits wheels with a 5 on 4-1/2" bolt pattern
  • Includes bearings, grease seal, dust cap, and installation hardware
  •

    Product Specifications

  • Manufacturer: DeeMaxx
  • Brake Type: Hydraulic disc brake
  • Rotor Type: Integrated hub and vented rotor
  • Inner Bearing: 68149 (1-3/8")
  • Outer Bearing: 44649 (1-1/16")
  • Caliper: CALP-3-6K-MAXX
  • Mounting Bracket: DBB-3.5KI-MAXX
  • Axle Rating: 3,500 lbs.
  • Bolt Pattern: 5 on 4-1/2"
  • Wheel Stud Size: 1/2"-20
  • Coating: MAXX corrosion-resistant coating
  •

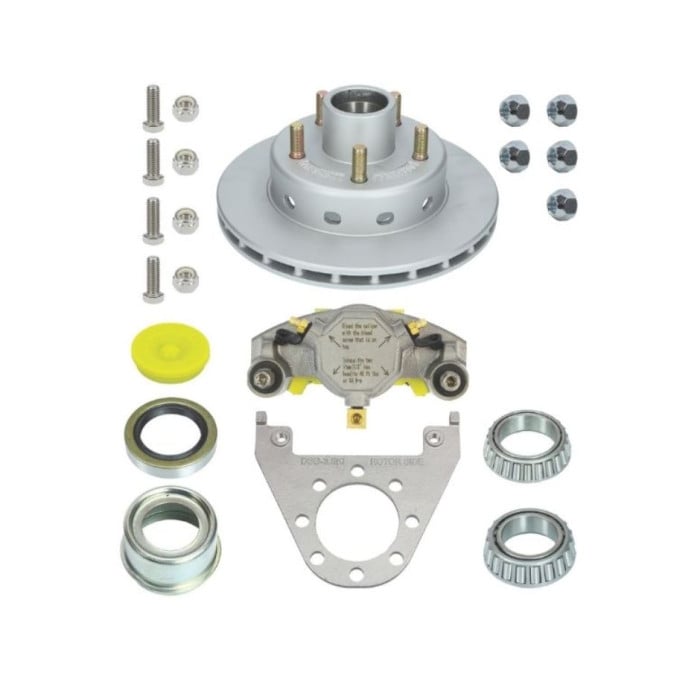

    Includes:

  • (1) MAXX-coated integrated hub/rotor assembly
  • (1) MAXX-coated caliper
  • (1) Set of ceramic brake pads
  • Caliper slider pins
  • (1) Inner bearing
  • (1) Outer bearing
  • (1) Grease seal
  • (1) Dust cap with silicone plug
  • (1) Mounting bracket
  • Mounting bolts and nuts
  • 1/2"-20 lug nuts
  •

    Note: This kit outfits one wheel. Two kits are required for both wheels of a single axle.
