DeeMaxx 10" Integral Hub/Rotor Single Axle Disc Brake Kit - 5 on 4 1/2" - Maxx Coating

In stock

SKU F3855
Price $421.07
Number of Bolts 5
Brake Manufacturer DeeMaxx
Manufacturer Product # DBI-3.5K-MAXX
  $421.07


Description / DeeMaxx 10" Integral Hub/Rotor Single Axle Disc Brake Kit - 5 on 4 1/2" - Maxx Coating

Product Features

  • Integral hub and rotor design combines the hub and rotor into one balanced unit
  • Bracket design mounts to a standard 4-bolt brake flange
  • MAXX-coated components provide corrosion resistance for fresh and saltwater applications
  • Vented rotors with additional hub ventilation holes help dissipate heat
  • Pre-pressed bearing races and wheel studs
  • Bearings, grease seal, grease caps, and mounting hardware sold separately
  • Designed for most 3,500 lb. axles with standard 4-bolt brake flanges
  • MAXX-coated calipers and mounting brackets
  • Ceramic brake pads provide smooth braking performance and reduced heat buildup
  • MAXX coating begins to form rust after 1,008 hours in a standard salt spray test
  • Designed to fit inside 13" and larger wheels
  • One kit provides disc brakes for one axle
    •

    Product Specifications

  • Rotor Diameter: 10-3/16"
  • Rotor Type: Integral hub and vented rotor
  • Bearings (sold separately): Inner - L68149 (1-3/8"), Outer - L44649 (1-1/16")
  • Caliper: DeeMaxx MAXX-coated hydraulic caliper with ceramic pads
  • Axle Rating: 3,500 lbs.
  • Flange Mounting Pattern: 4-Hole
  • Stud Diameter: 1/2"
  • Bolt Pattern: 5 on 4-1/2"
  • Wheel Size: 13" and larger
  • Coating: MAXX corrosion-resistant coating
  • Caliper Bolt Torque Specs: 50ft-lb
    •

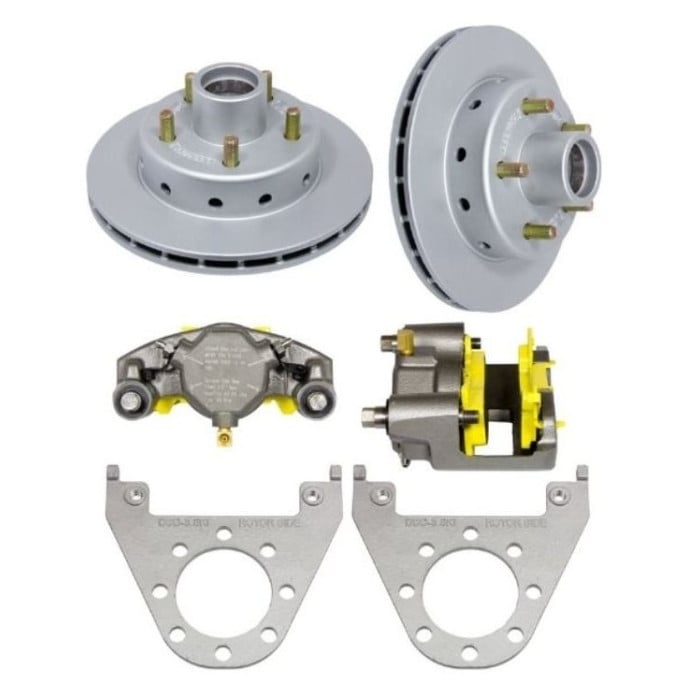

    Includes:

  • (2) MAXX-coated integral hub/rotor assemblies
  • (2) MAXX-coated hydraulic calipers with ceramic brake pads
  • (4) Caliper slider pins
  • (2) MAXX-coated caliper mounting brackets
    •

    Note: Bearings, grease seals, grease caps, wheel nuts, and axle-flange mounting hardware are not included. Verify bearing and seal dimensions before ordering. Use high-temperature marine bearing grease for disc brake applications.
