DeeMaxx 10" Integral Hub/Rotor Single Axle Disc Brake Kit - 5 on 4 1/2" - Stainless Steel Calipers

In stock

SKU F3856
Price $778.90
Number of Bolts 5
Brake Manufacturer DeeMaxx
Manufacturer Product # DBI-3.5K-MAXX-SS
  $778.90


Description / DeeMaxx 10" Integral Hub/Rotor Single Axle Disc Brake Kit - 5 on 4 1/2" - Stainless Steel Calipers

Product Features

  • Integral hub and rotor design combines the hub and rotor into one balanced unit
  • Bracket design provides multiple mounting options and helps reduce stress on mounting bolts
  • MAXX-coated hub/rotors and mounting brackets provide corrosion resistance for fresh and saltwater applications
  • Stainless steel calipers provide enhanced corrosion resistance
  • Vented rotors with additional hub ventilation holes help dissipate heat
  • Pre-pressed bearing races and wheel studs
  • Stainless steel brake pads and calipers
  • Designed for most 3,500 lb. axles with standard 4-bolt brake flanges
  • Fits inside 13" and larger wheels
  • Compatible with electric-over-hydraulic brake actuators
  • MAXX coating provides corrosion protection, with no rust reported after 1,008 hours in a standard salt spray test
  • Bearings, grease seals, grease caps, and mounting hardware sold separately
    •

    Product Specifications

  • Rotor Diameter: 10" (vented)
  • Rotor Type: Integral hub and rotor
  • Bearings (sold separately): Inner - L68149 (1-3/8"), Outer - L44649 (1-1/16")
  • Caliper: Stainless steel hydraulic caliper
  • Brake Pads: Stainless steel pads
  • Axle Rating: 3,500 lbs.
  • Flange Mounting Pattern: 4-Hole
  • Stud Diameter: 1/2"
  • Bolt Pattern: 5 on 4-1/2"
  • Wheel Size: 13" and larger
  • Hub/Rotor Coating: MAXX
  • Mounting Bracket Coating: MAXX
  • Caliper Material: Stainless steel
  • Caliper Bolt Torque Spec: 50ft-lb
    •

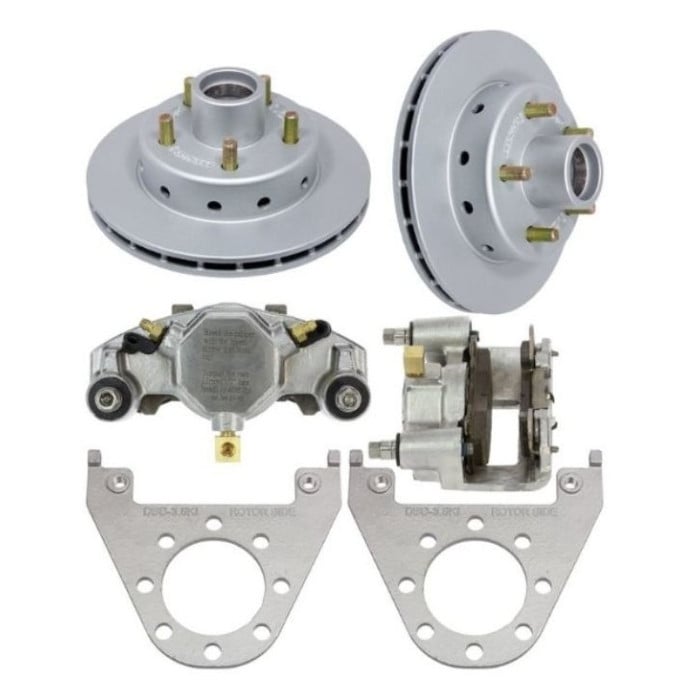

    Includes:

  • (2) MAXX-coated integral hub/rotor assemblies
  • (2) Stainless steel hydraulic calipers with brake pads
  • (4) Caliper slider pins
  • (2) MAXX-coated caliper mounting brackets
    •

    Note: Bearings, grease seals, grease caps, and mounting hardware are not included. One kit is required per axle. Verify axle rating, brake flange pattern, bearing sizes, and wheel clearance before ordering. Always use high-temperature marine bearing grease for disc brake applications.
