DeeMaxx 12" Integral Hub/Rotor Single Axle Disc Brake Kit - 6 on 5 1/2" - Maxx Coating

In stock

SKU F3868
Price $539.60
Number of Bolts 6
Brake Manufacturer DeeMaxx
Manufacturer Product # DBI-6K-MAXX
  $539.60


Description / DeeMaxx 12" Integral Hub/Rotor Single Axle Disc Brake Kit - 6 on 5 1/2" - Maxx Coating

Product Features

  • Integral hub and rotor design combines the hub and rotor into one balanced unit
  • MAXX-coated components provide corrosion resistance for fresh and saltwater applications
  • Vented rotors with additional hub ventilation holes help dissipate heat and reduce rotor warping
  • Pre-pressed bearing races and wheel studs
  • MAXX-coated hydraulic calipers and mounting brackets
  • Designed for most 5,200–6,000 lb. axles with standard 5-bolt brake flanges
  • Compatible with electric-over-hydraulic brake actuators
  • Fits 15" and larger wheels
  • MAXX coating begins to form rust after 1,008 hours in a standard salt spray test
  • Bearings, grease seals, grease caps, and mounting hardware sold separately
    •

    Product Specifications

  • Rotor Diameter: 12"
  • Rotor Type: Vented integral hub and rotor
  • Bearings (sold separately): Inner - 25580 (1-3/4"), Outer - 15123 (1-1/4")
  • Caliper: MAXX-coated hydraulic caliper
  • Axle Rating: 6,000 lbs.
  • Flange Mounting Pattern: 5-Hole
  • Stud Diameter: 1/2"
  • Bolt Pattern: 6 on 5-1/2"
  • Wheel Size: 15" and larger
  • Hub/Rotor Coating: MAXX
  • Caliper and Mounting Bracket Coating: MAXX
  • Brake Type: Hydraulic disc brakes
  • Caliper Bolt Torque Spec: 50ft-lb
    •

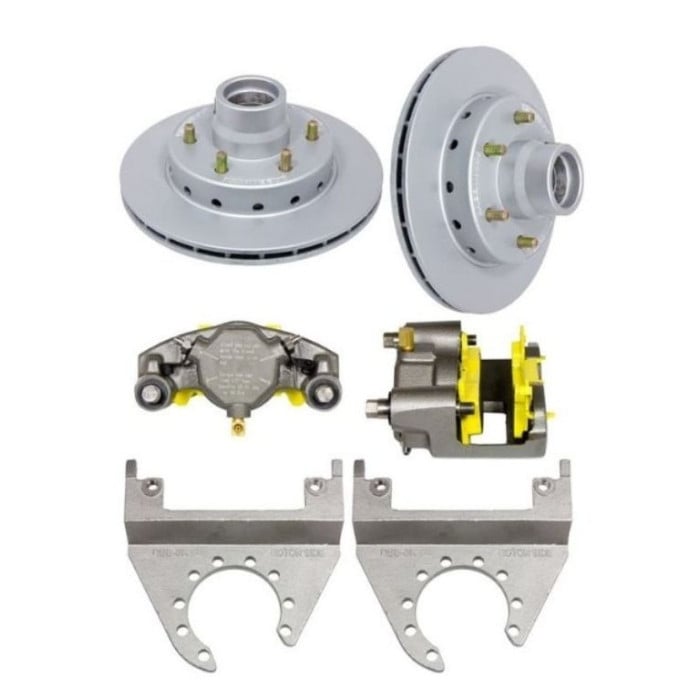

    Includes:

  • (2) MAXX-coated 12" integral hub/rotor assemblies
  • (2) MAXX-coated hydraulic calipers with brake pads
  • (4) Caliper slider pins
  • (2) MAXX-coated caliper mounting brackets
    •

    Note: Bearings, grease seals, grease caps, and axle-flange mounting hardware are not included. One kit is required per axle. Verify axle rating, brake flange pattern, bearing sizes, and wheel clearance before ordering. Always use high-temperature marine bearing grease for disc brake applications.
