DeeMaxx 13" Integral Hub/Rotor Single Axle Disc Brake Kit - 8 on 6 1/2" - Maxx Coating

In stock

SKU F3869
Price $848.39
Number of Bolts 8
Brake Manufacturer DeeMaxx
Manufacturer Product # DBI-7K-MAXX
  $848.39


Description / DeeMaxx 13" Integral Hub/Rotor Single Axle Disc Brake Kit - 8 on 6 1/2" - Maxx Coating

Product Features

  • Integral hub and rotor design combines the hub and rotor into one balanced unit
  • MAXX-coated components provide corrosion resistance for fresh and saltwater applications
  • 13.1" vented rotors help dissipate heat and provide consistent braking performance
  • Pre-pressed bearing races and wheel studs
  • MAXX-coated hydraulic calipers and mounting brackets
  • Designed for most 7,000 lb. axles with standard 5-bolt brake flanges
  • Eight-lug configuration with 1/2" wheel studs
  • Compatible with electric-over-hydraulic brake actuators
  • MAXX coating provides corrosion protection for marine trailer applications
  • Bearings, grease seals, grease caps, and mounting hardware sold separately
    •

    Product Specifications

  • Rotor Diameter: 13.1"
  • Rotor Type: Vented integral hub and rotor
  • Bearings (sold separately): Inner - 25580 (1-3/4"), Outer - 14125A (1-1/4")
  • Caliper: MAXX-coated hydraulic caliper
  • Axle Rating: 7,000 lbs.
  • Flange Mounting Pattern: 5-Hole
  • Stud Diameter: 1/2"
  • Bolt Pattern: 8 on 6-1/2"
  • Wheel Size: Verify wheel diameter and caliper clearance before ordering
  • Hub/Rotor Coating: MAXX
  • Caliper and Mounting Bracket Coating: MAXX
  • Brake Type: Hydraulic disc brakes
  • Caliper Bolt Torque Spec: 50ft-lb
    •

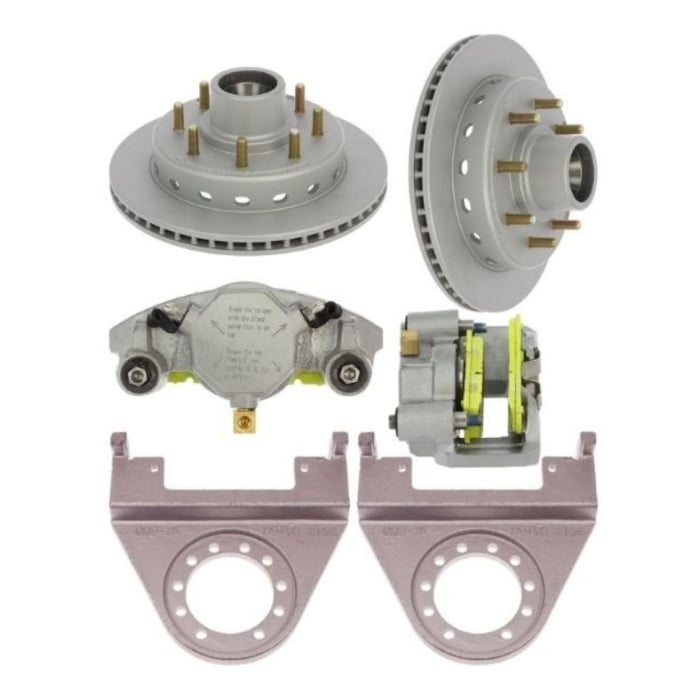

    Includes:

  • (2) MAXX-coated 13.1" integral hub/rotor assemblies
  • (2) MAXX-coated hydraulic calipers with brake pads
  • (4) Caliper slider pins
  • (2) MAXX-coated caliper mounting brackets
    •

    Note: This kit contains disc brake components for one complete axle. Bearings, grease seals, grease caps, and axle-flange mounting hardware are not included. Verify axle rating, brake flange pattern, wheel stud size, bearing dimensions, and wheel clearance before ordering. Brake actuator and brake lines are sold separately.
