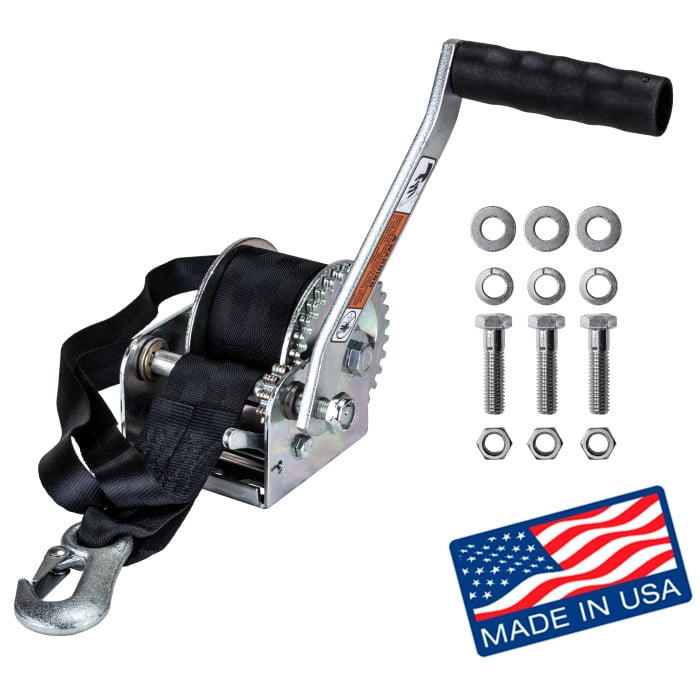

Dutton-Lainson 600 lb. Single Speed Hand Winch with 15' Strap - 7" Handle


Be the first to review this product

Availability: In stock

Item # DL600
Manufacturer / Brand: Dutton-Lainson
Capacity: 600 lbs.
Handle Length: 7"
Strap/Cable Included: Yes
Manufacturer Product #: DL600A

Additional Information

Product Features


The DL600 single speed hand winch by Dutton-Lainson (manufacturer part number 14125) is used for low capacity horizontal pulling applications. It has a zinc TUFFPLATE finish to give it optimal protection from rust and corrosion. This winch comes with a strap and hook and an ergonomic handle.


Product Features:

  • Zinc TUFFPLATE finish is 3 times stronger than standard zinc plating
  • Plated finish provides great resistance to fresh water and salt water environments
  • Rigid, welded reel construction
  • High strength carbon steel gears
  • Freewheel feature
  • Permanently lubricated bearings for smooth cranking
  • Ready to use strap with hook installed
  • Reversible ratchet
  • Made in USA


Product Specifications:

  • Rated Capacity: 600 lbs.
  • Drum Hub Diameter: 5/8"
  • Gear Ratio: 3.2:1
  • Handle Length: 7"
  • Max Mechanical Advantage: 57
  • Maximum Drum Capacity (Cable): 5/32" x 61'
  • Maximum Drum Capacity (Strap): 16'


NOTE: This winch is not designed for lifting applications. It is not to be used as a hoist for lifting, supporting or transporting people, or for loads over areas where people could be present.


Dutton-Lainson Part Number: 14125

Manufacturer Reference Number: 5141049 (Model DL600A)

Product Features and Specifications:

  • Ratchet winch with freewheel feature
  • Ideal for PWC, boat trailers, and other pulling applications
  • Long lasting zinc plated Tuffplate® finish for greater rust resistance
  • Carbon steel gears for high strength
  • Rigid, welded reel construction
  • Accepts strap, cable, or rope
  • Permanently lubricated bearings
  • Ergonomic handle grip
  • Meets SAE standard J1853
  • Ready to use- strap and hook installed
  • 600 lb. (272 kg) capacity
  • Strap length: 15'


  • (1) 15' strap
  • Mounting bolts
