Name: Trailer Axle - 1 3/4" Round - 2,200 lbs. Capacity - 1 1/16" Spindles - Painted
SKU: F1665A
Price: 204 USD
Availability: InStock

Trailer Axle - 1 3/4" Round - 2,200 lbs. Capacity - 1 1/16" Spindles - Painted

In stock

SKU F1665A

Price $204.00

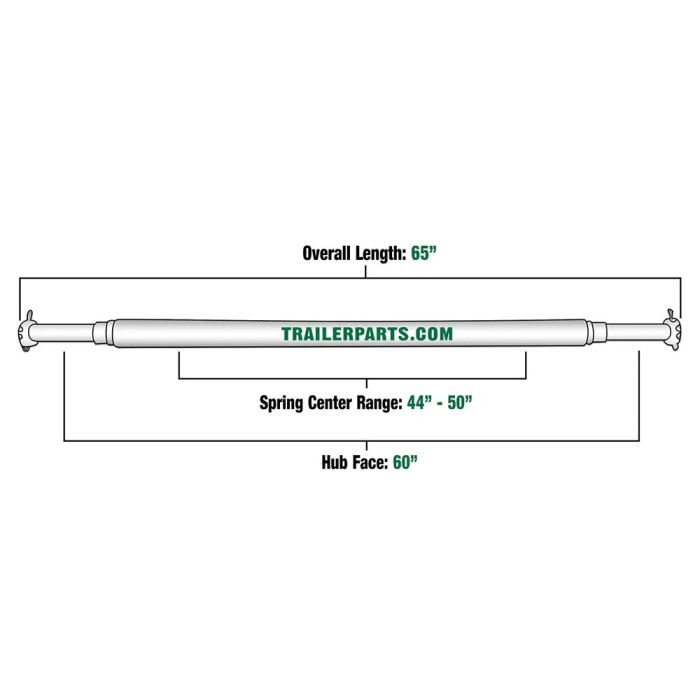

Approximate Overall Length 65"

Hub Face 60"

Capacity 2,200 lbs.

Brand Dexter

Manufacturer Product # 200423

Customizable Options:

Weld Spring Seats? *

Do Not Weld for Me - I will Weld Spring Seats Myself

Weld Axle Over Spring + $25.00

Weld Axle Under Spring + $25.00

Weld at (whole number)

Weld at (fraction)

$204.00

Product Features:

Black powder coat.

Includes 2 castellated nuts, 2 washers, and 2 cotter pins.

Easy lube spindles with zerk fittings for quick bearing packing.

Use with grease caps that have a rubber plug.

Spring seats come loose unless specified (welding extra).

No flanges

Slight camber

Hubs sold separately

For rims up to 13".

Product Specifications:

Capacity: 2,200 lbs.

Hub Face Measurement: 60"

Overall Length: 65"

Spring Center Range: 44" - 50"

Beam: 1 3/4" round.

Spindle: 1 1/16".

Hardware Information:

Bearings: 44649 (1 1/16" inner dimension) (sold separately)

Grease Seal Inner Diameter: 1.25".

Note: Axles must be welded within the recommended spring center range. Deviating may weaken the axle. Welded axles are non-returnable.
