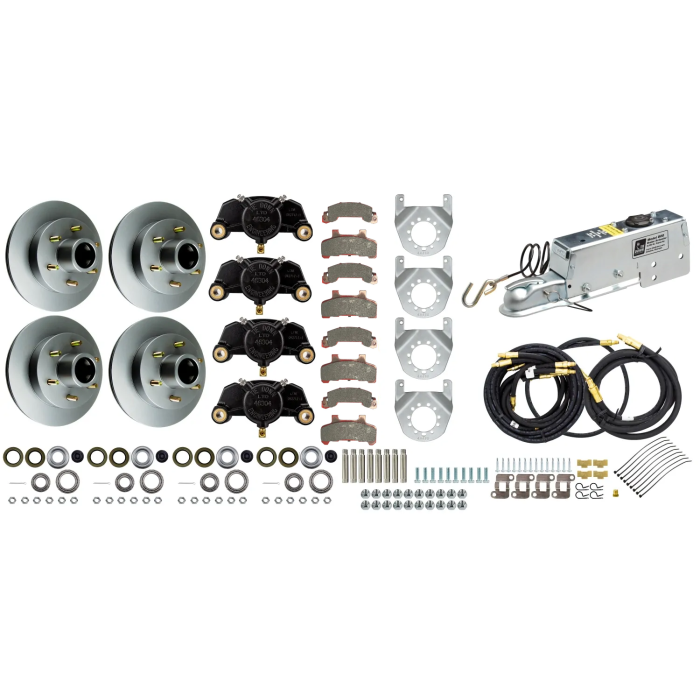

Actual product may vary from the photo, but the functionality is the same.

Toll Free: 844-882-8576
Ask a Question
Cart shopping-cart

Tie Down 12" Tandem Axle Disc Brake Kit - 6 on 5 1/2" - Galv-X Coated Rotors

In stock

SKU F8244
Price $2,253.04
Number of Bolts 6
Brake Manufacturer Tie Down
Manufacturer Product # F8244
  $2,253.04


Description / Tie Down 12" Tandem Axle Disc Brake Kit - 6 on 5 1/2" - Galv-X Coated Rotors

Tie Down Engineering's Eliminator series disc brakes are designed for marine use, featuring a hub and rotor combination system. The Galv-X coating protects against corrosion and rust, making these disc brakes an excellent choice for trailers. They deliver optimal braking performance and self-adjust as the pads wear down. This kit outfits a trailer with disc brakes on two axles, effectively replacing old drum brakes (electric or hydraulic) or upgrading from an idler axle system.



Hubs/Rotors

  • Pre-assembled rotors with races, bearings, and grease seals installed
  • Pre-greased with Lucas Red 'N' Tacky grease
  • Galv-X coated to prevent corrosion and rust
  • Easy lube grease cap with rubber plug
    •

    Calipers

  • Aluminum alloy A380 caliper with E-coat finish
  • Slip design for short axle overhangs and faster cooling
  • Automotive quality ceramic brake pads with stainless steel backing plates
  • Oversized rubber boot provides positive piston withdrawal
  • Non-corrodible oil-impregnated bronze bushings
  • Type 304 stainless steel bleeder valves with Teflon coating
  • Fine thread, stainless steel slider pins
    •

    Mounting Brackets

  • Galv-X finish
  • Fits on 5-bolt axle flanges
    •

    Brake Lining

  • Includes all lining for a tandem axle braking system
  • 20' main line
  • Brass tees included
  • Clamps and ties included
  • Flexible, rayon reinforced rubber
    •

    Actuator

  • Model 850E actuator
  • Cast ball clamp & extended latch lever
  • Zinc plated for protection
  • Built-in backup solenoid with cover
  • Heavy duty vinyl coated, coiled emergency stop cable
    •

    Product Specifications

  • Rotor Diameter: 12"
  • Inner Bearing: 25580 (1 3/4")
  • Outer Bearing: 15123 (1 1/4")
  • Seal Inner Diameter: 2.25"
  • Bolt Pattern: 6 on 5 1/2"
  • Axle Rating: 6,000 lbs. per set
  • Actuator Coupler Size: 2"
  • Actuator Mounting: 3" wide trailer tongues
  • Actuator Capacity: 8,500 lbs.
    •

    Note: Brake pads must be replaced when friction material is 3/32" (.094") or less.
