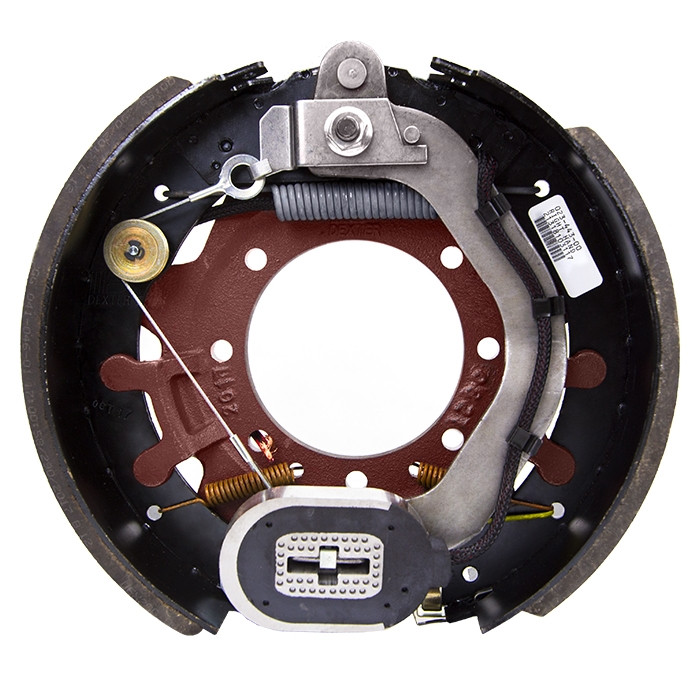

The 23-442 made by Dexter is a complete electric brake assembly loaded and ready to be mounted. The 5" wide brake padding and 12,000 lbs. capacity per pair is used for heavy duty, non-marine applications. This brake features a forward self-adjusting function that adjusts the pad on each forward stop to provide optimal performance.

Product Features:

• One right hand brake assembly (left hand sold separately)
• Loaded backing plate ready to mount
• Mounting hardware not included
• 5" wide ceramic brake pads
• Fits 12,000 lbs. axles with 7-hole flanges
• In-cab brake controller required for operation (sold separately)
• Electric brake systems offer more user control compared to hydraulic systems
• Brake lining and brake actuator not required for operation
• More moving parts allows cheaper part maintenance
• Forward Self-Adjusting feature
• Shoes will automatically adjust every time braking is applied
• Self-adjusting shoes will provide the best stopping power every time while taking stress off of the tow vehicle
• Non-polarized magnet allows either wire to be used as the ground or power supply
• Pre-spliced magnet wires
• Manufactured in USA

Product Specifications:

• Brake Size: 12.25" x 5"
• Brake Alignment: Right Hand - Passenger Side
• Individual Brake Capacity: 6,000 lbs.
• Axle Capacity: 12,000 lbs.
• 7-hole flange
• Wheel Size: 15" and up
• Shoe Adjustment: Self-Adjusting

NOTE: Electric brakes should not be used on marine applications.

Dexter Part Number: 23-443 (023-443, K23-443)
