Trailer Axle - 2" x 2" - Galvanized - 3,500 lbs. Capacity - 2" Drop

In stock

SKU 35292A
Price $375.00
Approximate Overall Length 92"
Hub Face 87 1/2"
Capacity 3,500 lbs.
Manufacturer Product # 49857
  $375.00


Description / Trailer Axle - 2" x 2" - Galvanized - 3,500 lbs. Capacity - 2" Drop

Product Features:

  • Hot dipped galvanized beam to combat corrosion.
  • Slight camber built into spindle welds
  • Stainless steel wear sleeve on each spindle
  • Includes 2 castellated nuts, 2 washers, and 2 cotter pins.
  • Zerk fitting at end of spindles for easy bearing lubrication.
  • Pre-drilled 5/16" drain hole.
  • 4-hole flanges for brake mounting
  • Hubs/drums sold separately.
    •

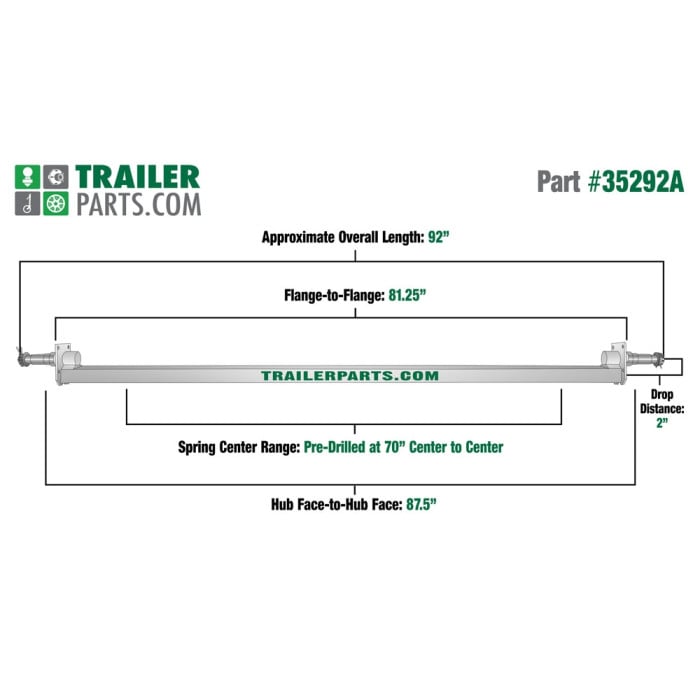

    Product Specifications:

  • Capacity: 3,500 lbs.
  • Hub Face Measurement: 87.5"
  • Flange to Flange Measurement: 81.25"
  • Overall Length: 92"
  • Spring Center: Pre-drilled at 70" center to center.
  • Beam: 2" x 2" square.
  • Spindle: 1 3/8" x 1 1/16" flared.
  • Spindle Drop Distance: 2".
  • Flange Hole Distance: 2 7/8" center-to-center.
    •

    Hardware Information:

  • Inner Bearing: 68149 (1 3/8" inner dimension) (sold separately)
  • Outer Bearing: 44649 (1 1/16" inner dimension) (sold separately)
  • Grease Seal Inner Diameter: 1.72".
    •

    Note: Comes pre-drilled for the springs to mount at 70". Deviating from this range may weaken the axle. Re-drilled axles cannot be returned for any reason.



    Similar to G-49857

    Related Products

    Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.

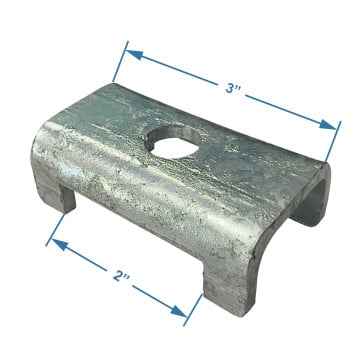

    Axle Spring Seat (Galvanized) for 2" Square Axles
    Item # F22
    Axle Spring Seat (Galvanized) for 2" Square Axles
    $5.96
    table View Details
    Trailer U-Bolt Kit - Fits 2" Axle - Galvanized Plates - Zinc U-Bolts
    Item # F327
    Trailer U-Bolt Kit - Fits 2" Axle - Galvanized Plates - Zinc U-Bolts
    $29.95
    Out of Stock
    Trailer U-Bolt Kit - Fits 2" Axle - Galvanized Plates - Zinc U-Bolts
    Item # 326
    Trailer U-Bolt Kit - Fits 2" Axle - Galvanized Plates - Zinc U-Bolts
    $31.72
    table View Details

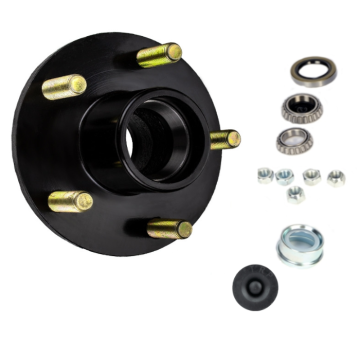

    Trailer Hub - 5 on 4 1/2" Bolt Circle with 68149-44649 Bearings
