Loadrite/EZ-Loader BT-150A (Short) Trailer Hub with 1-1/16" Bearings (L44649)

5 Bolt on 4 1/2" Short Trailer Hub with 1-1/16" Bearings (L44649) - 3 1/2" Hub Length

In stock

SKU 388B
Price $46.33
Item 388B
Number of Bolts 5 bolts
Bolt Circle 5 on 4 1/2"
Capacity 1,350 lbs.
Manufacturer / Brand Reliable Tool and Machine
Manufacturer Product # 1-150A-04-02

Description / Loadrite/EZ-Loader BT-150A (Short) Trailer Hub with 1-1/16" Bearings (L44649)

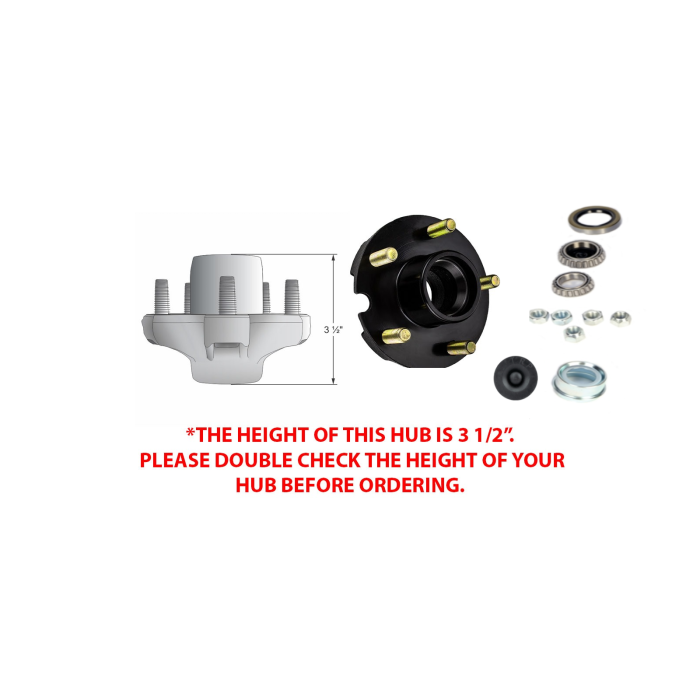

This hub is designed specifically for short spindle 1 1/16" straight axles. Many older model Loadrite and EZ-Load trailers used these shorter hubs. This hub has a height/length of 3 1/2" rather than the more common 4 1/8". This assembly will include two different sized grease seals to accommodate various short axle spindles.



Product Features:

  • Short hub measures 3 1/2" in length
  • Cast iron construction
  • Black painted finish
  • Pre-pressed studs and races
  • Standard 5 bolt pattern
  • Commonly found on older model Loadrite trailer axles before 2007
  • Includes bearings, grease seal, grease cap, and lug nuts
  • Dome shaped grease cap
  • Double lipped grease seal



NOTE: This hub can not accept wheels that are 13" or larger.



Product Specifications:

  • Individual Hub Capacity: 1,350 lbs.
  • Bolt Pattern: 5 on 4 1/2"
  • Hub Height: 3 1/2"
  • Flange Diameter: 5 1/2"
  • Inner/Outer Bearing (included): L44649 (1 1/16")
  • **Grease Seal Inner Diameter: 1.25" & 1.50"
  • Grease Cap Size: 1.98"
  • Wheel Size: 8" - 12"



** - This hub will come with (2) grease seals with different inner diameters to accommodate different sized spindle wear surfaces.



Includes:

  • (1) 5 Bolt Short Hub
  • (1) Inner Bearing
  • (1) Outer Bearing
  • (2) Grease Seal
  • (1) Grease Cap
  • (5) Lug Nuts



NOTE: To convert this hub to fit onto a short 1" straight axle spindle, bearing 44643 must be purchased separately. Two bearings per hub.



Reliable Tool part and Machine number: 1-150A-04-02
