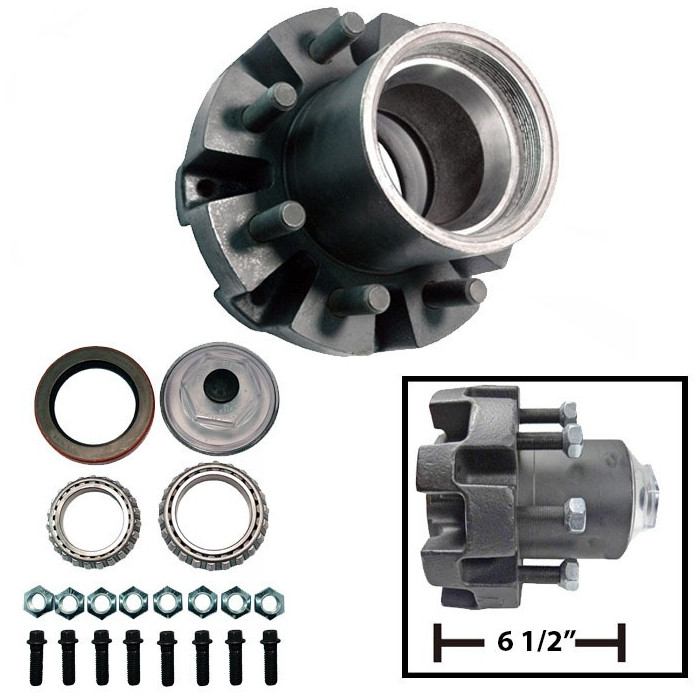

Trailer Hub - 8 on 6 1/2" Bolt Circle - 9K-10K - Oil Bath with 387A-25580 Bearings

Fits Drum 9-44

In stock

SKU 8-288-03
Price $336.53
Number of Bolts 8 bolts
Bolt Circle 8 on 6 1/2"
Capacity 9,000 - 10,000 lbs.
Manufacturer / Brand Dexter
Manufacturer Product # 008-288-03
  $336.53


Description / Trailer Hub - 8 on 6 1/2" Bolt Circle - 9K-10K - Oil Bath with 387A-25580 Bearings

Includes: (8) 7-244 Mounting Bolts



Product Features:

  • Designed for 9K-10K Dexter axles built before July of 2009
  • Bearing spacing is different on this hub compared to hubs/axles made after August of 2009
  • Cast iron, durable construction
  • Black powder coat finish
  • Designed to work with the Dexter 9-44 drum (sold separately)
  • Includes hardware
  • Pre-pressed races
  • Oil bath lubrication style hub
  • Threaded, screw on oil cap
  • Clear oil cap allows you to check the level of lubricant without disassemby
  • O-ring provides an air tight fit between the oil cap and the hub pilot hole
  • Rubber coated, unitized oil seal

    •

    NOTE: This hub can only be used in tandem with the Dexter drum 9-044-01. It is not interchangable with the two piece hub/drum system that is in production today.



    Product Specifications:

  • Application: 9,000 lbs. - 10,000 lbs. Dexter axles built before July of 2009
  • Bolt Pattern: 8 on 6/12"
  • Lubrication: Oil Bath
  • Pilot Hole Diameter: 4 3/4"
  • Bolt Diameter: 5/8"
  • Inner Bearing (included): 387A (2 1/4")
  • Outer Bearing (included): 25580 (1 3/4")
  • Oil Seal (included): 10-51 (3.88" x 2.87")
  • Drum (sold separately): 9-044-01

    •

    Includes:

  • (1) 8 Bolt Hub
  • (1) Inner Bearing
  • (1) Outer Bearing
  • (1) Oil Seal
  • (1) Oil cap with O-ring and rubber plug
  • (8) Drum mounting bolts
  • (8) Lug Nuts

    • Related Products

    Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.

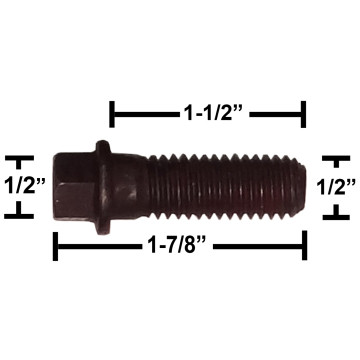

    Dexter 007-292-00 - Brake Drum Mounting Bolt (1/2" - 13 x 1 1/2")
