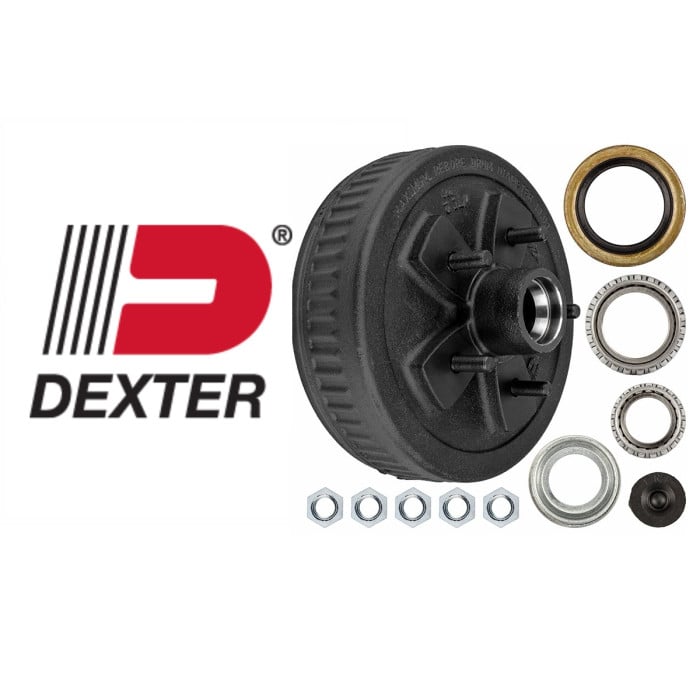

Dexter 10" x 2 1/4" Brake Drum - 5 Bolt on 5" with 1 3/8" x 1 1/16" Bearings (68149 x L44649) - 1/2" Studs

Product Features:

• Can be used with electric or hydraulic drum brake assemblies
• Durable, cast iron construction for greater longevity
• Black painted finish
• Pre-pressed races and studs
• Includes bearings, grease seal and cap, and lug nuts
• EZ-Lube grease caps allows access to spindle zerk for re-greasing without having to replace the cap
• Used on axles with 3,500 lbs. capacities
• Fits 10" brake assemblies
• Grease sold separately
• Made in USA

Product Specifications:

• Brake Dimensions: 10" x 2 1/4"
• Bolt Pattern: 5 on 5"
• Axle Capacity: 3,500 lbs.
• Wheel Size: 13" - 15"

Hardware Specifications:

• Inner Bearing: 68149 (1 3/8")
• Outer Bearing: L44649 (1 1/16")
• Grease Seal Inner Diameter: 1.72"
• Grease Seal Outer Diameter: 2.56"
• Grease Cap: 1.98"
• Lug Nuts: 1/2"-20

Includes:

• (1) 5 Bolt Drum with Pre-Pressed Races and Studs
• (1) Inner Bearing
• (1) Outer Bearing
• (1) Grease Seal
• (1) EZ-Lube Grease Cap with Rubber Plug
• (5) Lug Nuts

Dexter Axle Part Number: 8-249-07
