Hubs, Drums, Bearings, & Parts

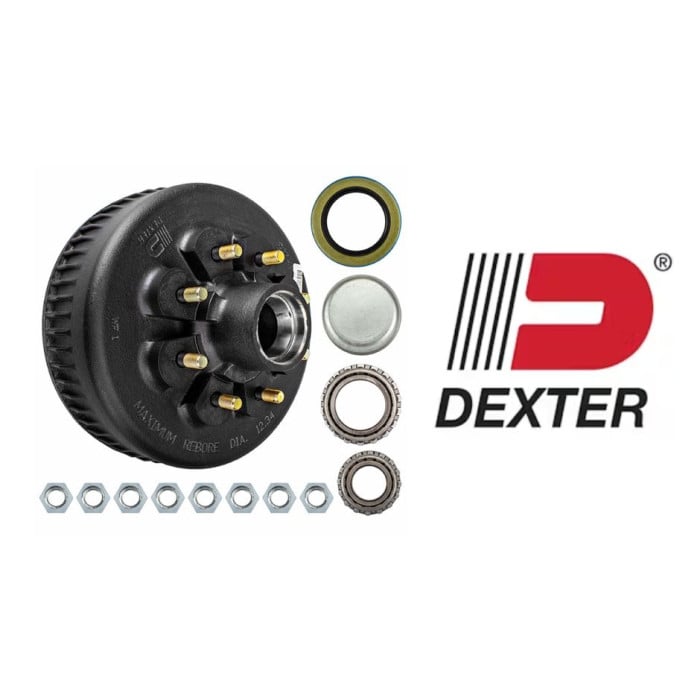

Dexter 12 1/4" x 3 3/8" Brake Drum - 8 on 6-1/2" with 1 3/4" x 1 1/4" Bearings (25580 x 02475) - 9/16" Studs

More Views

Free Shipping
$436.26

Be the first to review this product

Availability: In stock

Item # 8-285-94
Drum Size: 12 1/4" x 3 3/8"
Number of Bolts: 8 Bolt
Bolt Pattern: 8 on 6 1/2"
Inner Bearing: 1 3/4"
Outer Bearing: 1 1/4"
Bolt Size: 9/16"
Manufacturer / Brand: Dexter
Manufacturer Product #: 008-285-94

Additional Information

Product Features

Details

Product Features:

  • Applicable with 12 1/4" x 3 3/8" trailer brakes
  • Durable, cast iron construction
  • Integral, one-piece hub and drum assembly
  • Pre-pressed studs and races
  • Bearings, grease cap, grease seal, and lug nuts included upon purchase
  • Bearing grease sold separately
  • Dome shaped grease cap
  • Double lipped grease seal provides a snug fit on the axle spindle to deter debris from entering the drum
  • Designed for 8,000 lbs. axles with #42 flared spindles
  • Drum manufactured in USA



Product Specifications:

  • Applicable Brake Dimensions: 12 1/4" x 3 3/8"
  • Bolt Pattern: 8 on 6 1/2"
  • Stud Diameter: 9/16"
  • Individual Drum Capacity: 4,000 lbs.
  • Wheel Size: 16" - 17 1/2"

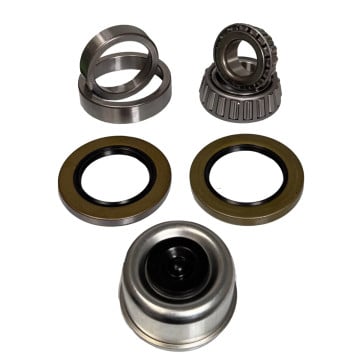

Hardware Specifications:

  • Inner Bearing: 1 3/4" (25580)
  • Outer Bearing: 1 1/4" (02475)
  • Grease Seal Inner Diameter: 2.25"
  • Grease Seal Outer Diameter: 3.37"
  • Grease Cap Diameter: 2.72"
  • Lug Nuts: 9/16"-18



Includes:

  • (1) 8 Bolt Drum
  • (1) Inner Bearing
  • (1) Outer Bearing
  • (1) Grease Seal
  • (1) Grease Cap
  • (8) Lug Nuts



Dexter Axle Part Number: 8-285-94 (8-285-11 Drum Only)
