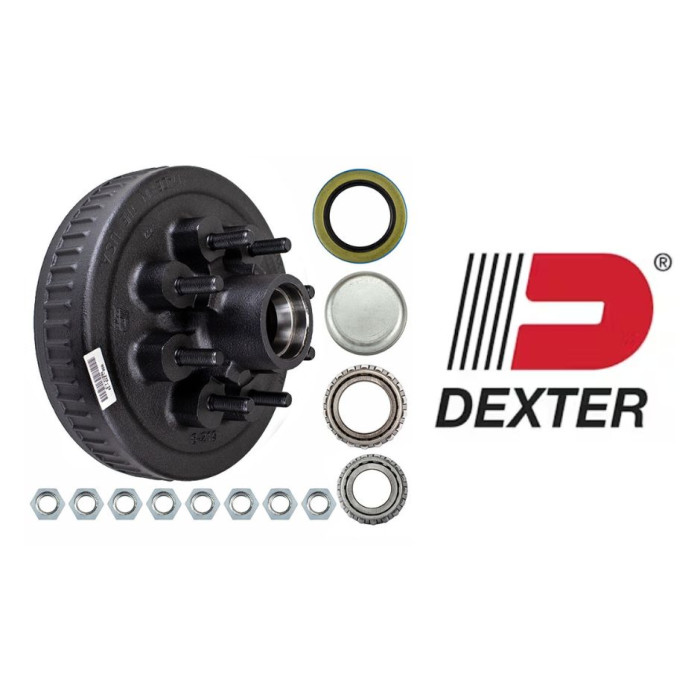

Actual product may vary from the photo, but the functionality is the same.

Toll Free: 844-882-8576
Ask a Question
Cart shopping-cart

12" x 2" Brake Drum - 8 on 6 1/2" with 1 3/4" x 1 1/4" Bearings (25580 x 14125A) - 5/8" Studs

In stock

SKU 8-219-18
Price $199.33
Drum Size 12" x 2"
Number of Bolts 8 Bolt
Bolt Pattern 8 on 6 1/2"
Inner Bearing 1 3/4"
Outer Bearing 1 1/4"
Bolt Size 5/8"
Manufacturer / Brand Dexter Axle
Manufacturer Product # 008-219-18
  $199.33


Description / 12" x 2" Brake Drum - 8 on 6 1/2" with 1 3/4" x 1 1/4" Bearings (25580 x 14125A) - 5/8" Studs

Product Features:

  • Applicable with 12" electric or hydraulic brakes
  • Durable, cast iron construction
  • Integral hub a drum
  • Pre-pressed races and studs
  • Bearings, grease seal, domed grease cap, and lug nuts included upon purchase
  • Double lipped, spring loaded grease seal
  • Commonly used on 5,200 lbs. - 7,000 lbs. axles
  • Grease sold separately
  • Drum manufactured in the USA

    •

    Product Specifications:

  • Applicable Brake Dimensions: 12" x 2"
  • Bolt Pattern: 8 on 6 1/2"
  • Stud Diameter: 5/8"
  • Individual Drum Capacity: 3,500 lbs.
  • Wheel Size:  16 - 17 1/2"

    •

    Hardware Specifications:

  • Inner Bearing: 25580 (1 3/4")
  • Outer Bearing: 14125A (1 1/4")
  • Grease Seal Inner Diameter: 2.25"
  • Grease Seal Outer Diameter: 3.37"
  • Grease Cap Diameter: 2.72"
  • Lug Nuts: 5/8"-18

    •

    Includes:

  • (1) 8 Bolt Drum
  • (1) Inner Bearing
  • (1) Outer Bearing
  • (1) Grease Seals
  • (1) Grease Cap
  • (8) Lug Nuts

    •

    Dexter Axle Part Number: 8-219-08
