12" x 2" Nev-R-Lube Brake Drum - 6 on 5 1/2" with 42mm Bearing Cartridge (K71997) - 1/2" Studs

In stock

SKU 8-388-90
Price $623.54
Drum Size 12" x 2"
Number of Bolts 6 Bolt
Bolt Pattern 6 on 5 1/2"
Inner Bearing 42mm Nev-R-Lube
Outer Bearing 42mm Nev-R-Lube
Bolt Size 1/2"
Manufacturer / Brand Dexter Axle
Manufacturer Product # 008-388-90
  $623.54


Description / 12" x 2" Nev-R-Lube Brake Drum - 6 on 5 1/2" with 42mm Bearing Cartridge (K71997) - 1/2" Studs

Product Features:

  • Applicable with 12" drum brakes
  • High-end cast iron construction creates a one-piece integral hub and drum unit
  • Opposed tapered roller bearing cones sealed inside of a precision ground casing that are pre-lubricated and resistant to contamination
  • Designed to be a maintenance free product that eliminates the need to pack and adjust bearings
  • Grease seal is not required
  • Pre-pressed bearing cartridge and studs
  • Easy, convenient installation
  • Used on 42mm straight spindles only
  • ISO 9001:2015 Certified
  • Made in the USA

    •

    NOTE: This Nev-R-Lube drum is not designed to be submerged.



    Product Specifications:

  • Brake Dimensions: 12" x 2"
  • Bolt Pattern: 6 on 5 1/2"
  • Stud Diameter: 1/2"
  • Wheel Size: 14 1/2" - 16 1/2"
  • Individual Drum Capacity: 3,500 lbs.

    •

    Hardware Specifications:

  • Bearing Cartridge: 31-073 (42mm)
  • Grease Cap: 3.12"
  • Lug Nuts: 1/2"-20

    •

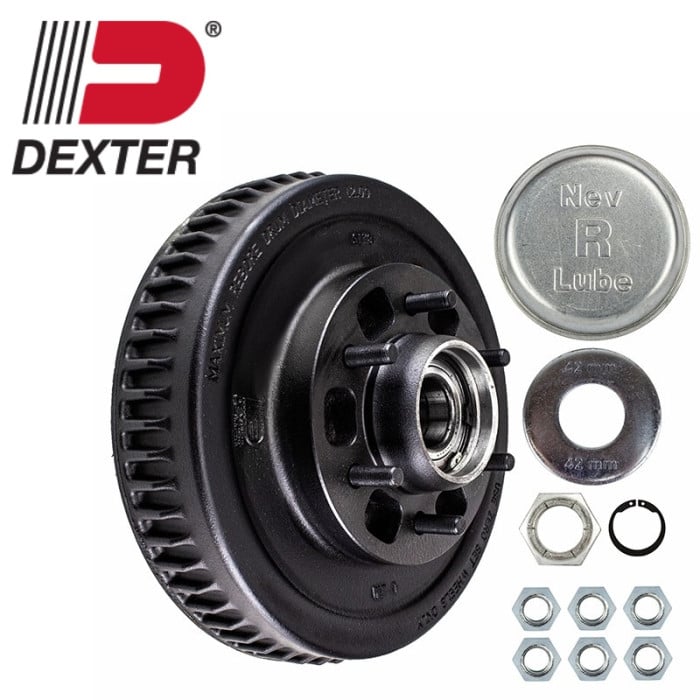

    Includes:

  • (1) 6 Bolt Drum
  • (1) Bearing Cartridge
  • (1) Inner Snap Ring
  • (1) Outer Snap Ring
  • (1) Spindle Nut
  • (1) Spindle Washer
  • (1) Grease Cap
  • (6) Lug Nuts

    •

    Dexter Axle Part Number: 8-388-90
