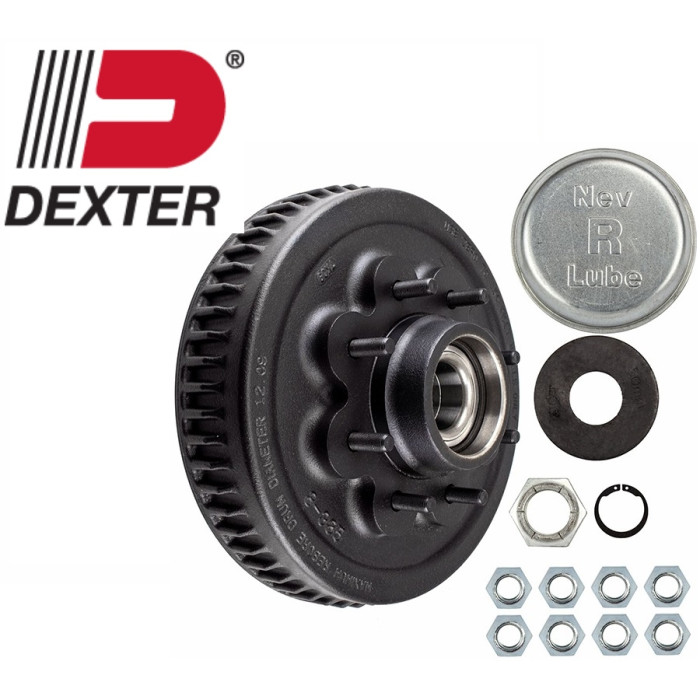

Dexter 12" x 2" Nev-R-Lube Brake Drum - 8 on 6 1/2" with 50mm Bearing Cartridge (31-071-03) - 1/2" Studs

In stock

SKU 8-385-92
Price $635.15
Item 8-385-92
Drum Size 12" x 2"
Number of Bolts 8 Bolt
Bolt Pattern 8 on 6 1/2"
Inner Bearing 50mm Nev-R-Lube
Outer Bearing 50mm Nev-R-Lube
Bolt Size 1/2"
Manufacturer / Brand Dexter Axle
Manufacturer Product # 008-385-92

Description / Dexter 12" x 2" Nev-R-Lube Brake Drum - 8 on 6 1/2" with 50mm Bearing Cartridge (31-071-03) - 1/2" Studs

Product Features:

  • Applicable with 12" drum brakes
  • High-end cast iron construction creates a one-piece integral hub and drum unit
  • Opposed tapered roller bearing cones sealed inside of a precision ground casting that is pre-lubricated and resistant to contamination
  • Designed to be a maintenance free product that eliminates the need to pack and adjust bearings
  • Grease seal not required
  • Pre-pressed bearing cartridge and studs
  • Easy, simple installation
  • Used on 50mm straight spindles only
  • ISO 9001:2015 Certified
  • Made in USA



NOTE: This Nev-R-Lube drum is not designed to be submerged



Product Specifications:

  • Applicable Brake Dimensions: 12" x 2"
  • Bolt Pattern: 8 on 6 1/2"
  • Stud Diameter: 1/2"
  • Wheel Size: 16" - 17 1/2"
  • Individual Drum Capacity: 3,500 lbs.



Hardware Specifications:

  • Bearing Cartridge: 31-071 (50mm)
  • Grease Cap: 3.35"
  • Lug Nuts: 1/2"-20



Includes:

  • (1) Bearing Cartridge
  • (1) Inner Snap Ring
  • (1) Outer Snap Ring
  • (1) Spindle Nut
  • (1) Spindle Washer
  • (1) Grease Cap
  • (8) Lug Nuts



Dexter Axle Part Number: 8-385-92
