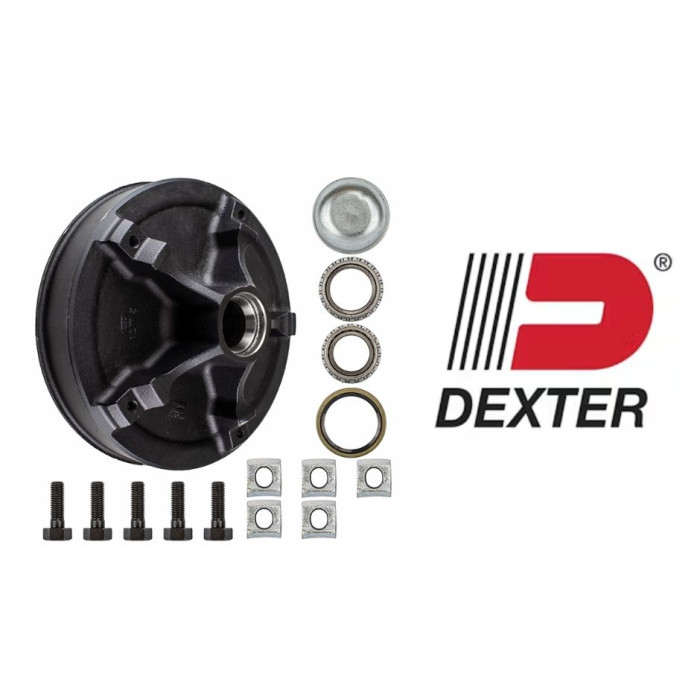

12" x 2" Rim Clamp Style Mobile Home Brake Drum - 5 on 9.4" with 68149 & 67048 Bearings - 9/16" Studs

In stock

SKU 8-222
Price $124.64
Drum Size 12" x 2"
Number of Bolts 5 Bolt
Bolt Pattern 5 on 9.4"
Inner Bearing 1 3/8"
Outer Bearing 1 1/4"
Bolt Size 9/16"
Manufacturer / Brand TruRyde
Manufacturer Product # MHD-122459-RCB
  $124.64


Description / 12" x 2" Rim Clamp Style Mobile Home Brake Drum - 5 on 9.4" with 68149 & 67048 Bearings - 9/16" Studs

Product Features:

  • Rim clamp syle drum for "open" style wheels
  • Cast iron construction with a black powder coat finish
  • Zinc plated rim clamps to help protect against corrosion
  • Pre-pressed races and studs
  • Includes bearings, grease seal, grease cap, rim clamps and lug nuts
  • Enclosed, dome-shaped grease cap
  • Double lipped, spring loaded grease seal
  • Designed for 4,500 lbs. Dexter mobile home axles
  • Grease sold separately

    •

    Product Specifications:

  • Applicable Brake Dimensions: 12" x 2"
  • Bolt Pattern: 5 on 9.4"
  • Individual Drum Capacity: 2,250 lbs.
  • Wheel: Open Center Style
  • Rim Clamp Bolts: 9/16"

    •

    Hardware Specifications:

  • Inner Bearing: 1 3/8" (L68149)
  • Outer Bearing: 1 1/4" (LM67048)
  • Grease Seal Inner Diameter: 1.93"
  • Grease Seal Outer Diameter: 2.51"
  • Studs: 9/16"-18
  • Grease Cap: 2.45"

    •

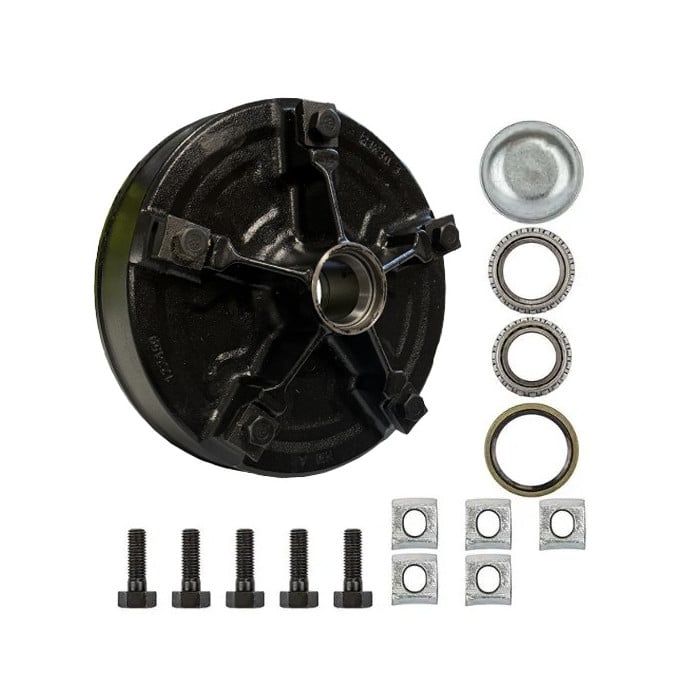

    Includes:

  • (1) Rim Clamp Style Drum
  • (1) Inner Bearing
  • (1) Outer Bearing
  • (1) Grease Seal
  • (1) Grease Cap
  • (5) Rim Clamps
  • (5) Lug Nuts

    •

    Equivalent to Dexter Axle Part Number: 8-222-24 (8-222-04)
