7" x 1 1/4" Brake Drum - 5 on 4 1/2" with 1 1/16" Bearings (L44649) - 1/2" Studs 5-700C-04-00

More Views

$77.01

Be the first to review this product

Availability: In stock

Item # 700C
Drum Size: 7" x 1 1/4"
Number of Bolts: 5 Bolt
Bolt Pattern: 5 on 4 1/2"
Inner Bearing: 1 1/16"
Outer Bearing: 1 1/16"
Bolt Size: 1/2"
Manufacturer / Brand: UCF - The Universal Group LLC
Manufacturer Product #: BD-75450

Additional Information

Product Features

Details

This brake drum assembly by UCF The Universal Group LLC (manufacturer part number BD-75450) is used on small capacity trailers to improve stopping capability.  This drum will come with all internal hardware for mounting.



Product Features:

  • Compatible with either electric or hydraulic brake systems
  • Cast iron construction with a black painted finish
  • Integral, one piece hub and drum combination
  • Used on small capacity trailers with axle brake flanges installed
  • Pre-pressed races and studs
  • Includes bearings, grease seal, grease cap and lug nuts
  • Used on axles with 2,000 lbs. capacities
  • Fits brakes that are 7" in diameter pad to pad with 1 1/4" width
  • Grease sold separately



Product Specifications:

  • Drum Dimension: 7" x 1 1/4"
  • Bolt Pattern: 5 on 4 1/2"
  • Stud Diameter: 1/2"
  • Axle Capacity: 2,000 lbs.
  • Wheel Size: 10" x 13"



Hardware Specifications:

  • Inner Bearing: L44649 (1 1/16")
  • Outer Bearing: L44649 (1 1/16"
  • *Grease Seal Inner Diameter: 1.25" & 1.50"
  • Grease Seal Outer Diameter: 1.98"
  • Grease Cap: 1.98"
  • Lug Nuts: 1/2"-20



*NOTE: This drum includes (2) grease seals that have different inner diameters to accommodate spindles with different sized wear surfaces.

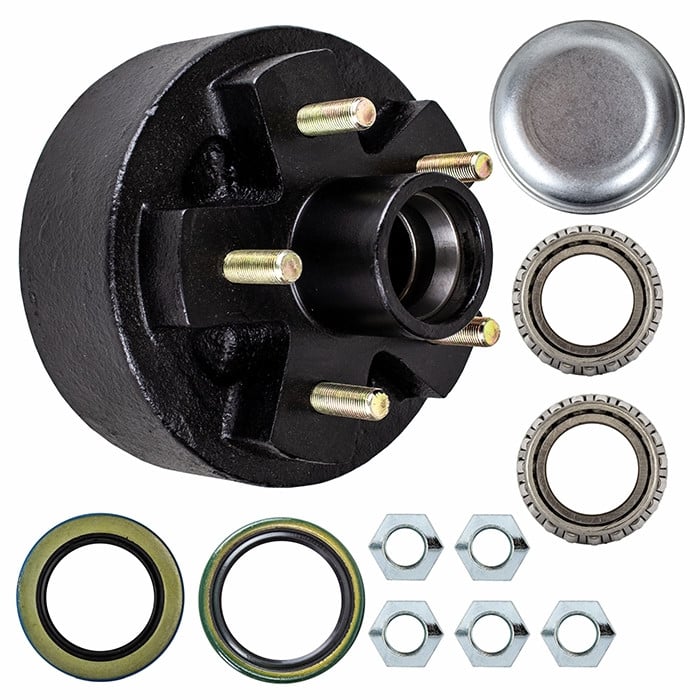

Includes:

  • (1) 5 Bolt Drum
  • (1) Inner Bearing
  • (1) Outer Bearing
  • (2) Grease Seals
  • (1) Grease Cap
  • (5) Lug Nuts



UCF The Universal Group Part Number: BD-75450

Similar to Dexter Axle Part Number: 8-257-05
