Trailer Axle - Painted 2 3/8" Round - 3,500 lbs. Capacity - 1 3/8" x 1 1/16" Spindles - 85" Hub Face, 70" Spring Center

In stock

SKU 3590A70
Price $279.00 $223.20

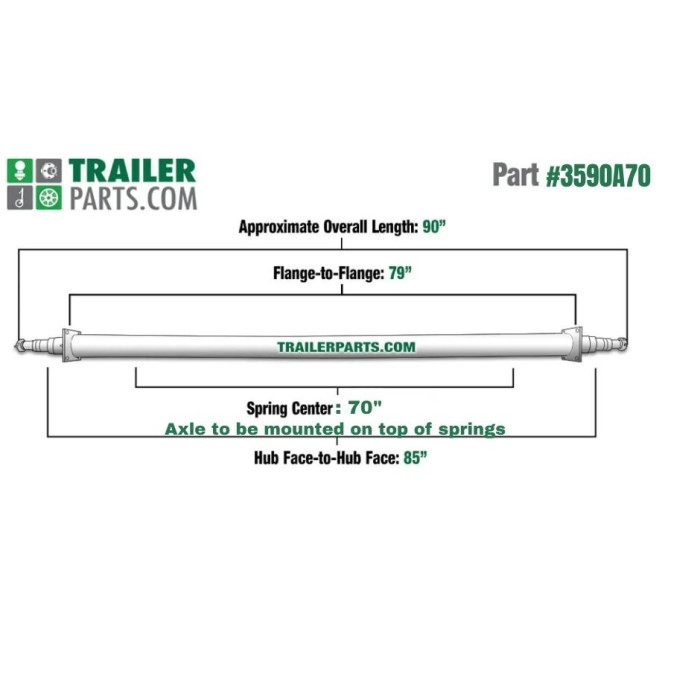

Approximate Overall Length 90"
Hub Face 85"
Spring Center 70"
Spring Center Position Axle Over Spring
Capacity 3,500 lbs.
Brand Dexter
Manufacturer Product # 200040-1
$279.00
  $223.20


Description / Trailer Axle - Painted 2 3/8" Round - 3,500 lbs. Capacity - 1 3/8" x 1 1/16" Spindles - 85" Hub Face, 70" Spring Center

Product Features:

  • Black powder coat.
  • Includes 2 castellated nuts, 2 washers, and 2 cotter pins.
  • Zerk fitting at the end of spindles for easy bearing lubrication.
  • Slight camber built into axle beam.
  • Hubs/drums sold separately
  • 4-hole flanges
    •

    Product Specifications:

  • Capacity: 3,500 lbs.
  • Hub Face Measurement: 85"
  • Flange to Flange Measurement: 79"
  • Overall Length: 90"
  • Spring Center: 70"
  • Beam: 2 3/8" round.
  • Spindle: 1 3/8" x 1 1/16" flared.
  • Flange Hole Distance: 2 7/8" center-to-center.
    •

    Hardware Information:

  • Inner Bearing: 68149 (1 3/8" inner diameter) (sold separately)
  • Outer Bearing: 44649 (1 1/16" inner diameter) (sold separately)
  • Grease Seal Inner Diameter: 1.72"
    •
