Trailer Axle - 1 3/4" Round - 2,000 lbs. Capacity - 1" Spindles - Painted

In stock

SKU 55A

Price $150.77

Approximate Overall Length 55 1/2"

Hub Face 51"

Capacity 2,000 lbs.

Brand Dexter

Manufacturer Product # 49944

Customizable Options:

Weld Spring Seats? *

Do Not Weld for Me - I will Weld Seats Myself

Weld Axle Over Spring + $25.00

Weld Axle Under Spring + $25.00

Weld at (whole number)

Weld at (fraction)

$150.77

Product Features:

Black powder coat.

Includes 2 castellated nuts, 2 washers, and 2 cotter pins.

Non-lube spindle.

Spring seats come loose unless specified (welding extra).

No flanges.

For rims up to 13".

Non-camber

Hubs sold separately.

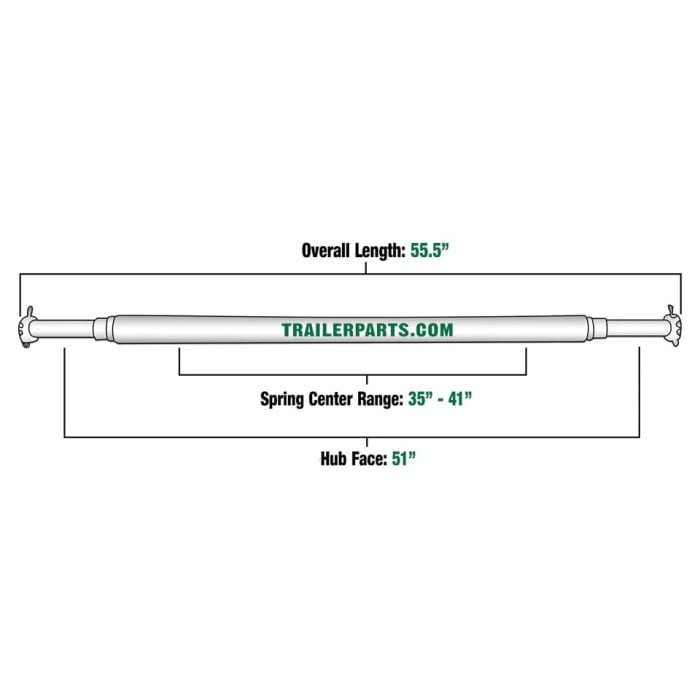

Product Specifications:

Capacity: 2,000 lbs.

Hub Face Measurement: 51"

Overall Length: 55.5"

Spring Center Range: 35" - 41"

Beam: 1 3/4" round.

Spindle: 1" straight.

Hardware Information:

Inner and Outer Bearings: 44643 (1" inner dimension) (sold separately)

Grease Seal Inner Diameter: 1.25".

Note: Axles must be welded within the recommended spring center range. Deviating may weaken the axle. Welded axles are non-returnable.
