Axles

Painted 1 3/4" Round Trailer Axle - 2,000 lbs. Capacity with 1" Spindles - 49" Hub Face

More Views

$89.99

Be the first to review this product

Availability: In stock

* Required Fields

Item # 53A
Approximate Overall Length: 53 1/2"
Hub Face: 49"
Capacity: 2,000 lbs.
Brand: Tie Down Engineering
Manufacturer Product #: 49943

Additional Information

Product Features

Details

The 53A (Tie Down Engineering/Dexter Marine part number 49943) is a 2,000 lbs. round tubed axle perfect for light duty trailer applications. This axle comes with two spring seats, axle nuts, washers and cotter pins. The beam is coated with a black powder finish to help resist corrosion. Hubs are sold separately.



Product Features:

  • Black powder coat finish
  • Includes 2 castellated nuts, 2 washers, and 2 cotter pins
  • Non-lube spindles
  • Comes with spring seats loose unless otherwise specified (welding is extra)
  • Spring seats must be welded to axle beam before installation
  • No flanges for brake mounting
  • Should not be used with rims exceeding 13"
  • Non-camber beam
  • Hubs sold separately

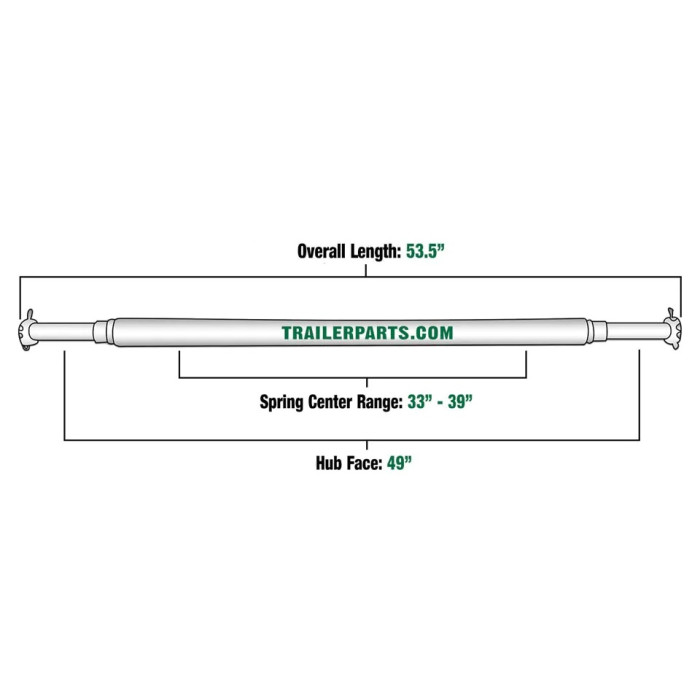

Product Specifications:

  • Capacity: 2,000 lbs.
  • Hub Face Measurement: 49"
  • Overall Length: 53.5"
  • **Spring Center Range: 33" - 39"
  • Beam: 1 3/4" Round
  • Spindle: 1" Straight



**The spring center range is measured from the center of one spring or spring seat to the center of the opposite spring or spring seat.



Hardware Information:

  • Inner/Outer Bearings (sold separately): 44643 (1" inner dimension)
  • Grease Seal Inner Diameter: 1.25"



NOTE: Axles will only be welded within the recommended spring center range provided by the manufacturer. Going inside or outside of this range may cause the strength of the axle to lessen. Welded axles are non-returnable for any reason.



Tie Down Engineering/Dexter Marine of Georgia Part Number: 49943
