Name: Trailer Axle - Painted 2 3/8" Round - 3,500 lbs. Capacity - 1 3/8" x 1 1/16" Spindles - 4" Drop - 75" Hub Face
SKU: 35480A
Price: 452 USD
Availability: InStock

Trailer Axle - Painted 2 3/8" Round - 3,500 lbs. Capacity - 1 3/8" x 1 1/16" Spindles - 4" Drop - 75" Hub Face

In stock

SKU 35480A

Price $452.00

Approximate Overall Length 79 1/2"

Hub Face 75"

Capacity 3,500 lbs.

Brand Dexter

Manufacturer Product # 49938

Customizable Options:

Weld Spring Seats? *

Weld Axle Over Spring + $25.00

Weld Axle Under Spring + $25.00

Do Not Weld for Me - I Will Weld Seats Myself

Weld at (whole number)

Weld at (fraction)

$452.00

Product Features:

Black powder coat finish.

Includes 2 castellated nuts, 2 washers, and 2 cotter pins.

Zerk fitting at end of spindles for simple bearing lubrication.

To be used with EZ-Lube caps.

Spring seats come loose unless otherwise specified (welding extra); seats must be welded to the axle beam prior to installation.

Slight camber built into axle beam.

Hubs/drums sold separately.

Brake Mounting: 4-hole flanges for brake mounting

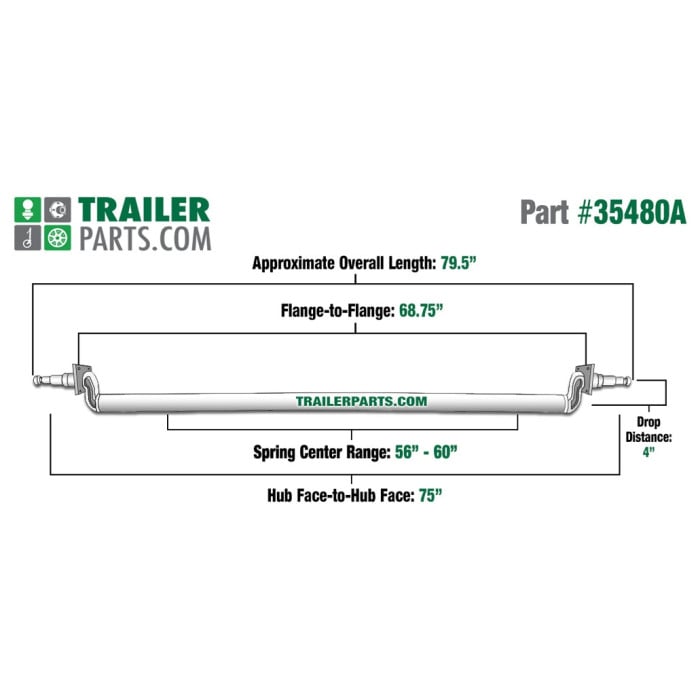

Product Specifications:

Capacity: 3,500 lbs.

Hub Face Measurement: 75"

Flange to Flange Measurement: 68.75"

Overall Length: 79.5"

Spring Center Range: 56" - 60"

Beam: 2 3/8" round.

Spindle: 1 3/8" x 1 1/16" flared.

Spindle Drop Distance: 4".

Flange Type: 2 7/8" center-to-center.

Hardware Information:

Inner Bearing: 68149 (1 3/8" inner diameter) (sold separately)

Outer Bearing: 44649 (1 1/16" inner diameter) (sold separately)

Grease Seal Inner Diameter: 1.72".

Note: Welding should only occur within the recommended spring center range to prevent weakening or failure. Ensure the camber bow points up during installation for even tire wear.
