Dexter Marine/Tie Down Engineering 9.6" Integral Disc Brake Assembly - 5 on 4 1/2" - Galv-X Coated Rotors


Availability: In stock

Item # 82113
Number of Bolts: 5
Brake Manufacturer: Dexter Marine by Tie Down Engineering
Manufacturer Product #: 82113

Additional Information

Product Features


This kit by Dexter Marine under the Tie Down Engineering division comes with all components necessary to outfit one wheel with a disc brake system. The integral one piece rotor/hub unit will provide the cool running benefits of a vented disc rotor and a cast aluminum caliper for users traveling in steel grades and over long hauls. Galv-X coating provides added protection from rust and corrosion from salt.


Product Features:

  • Pre-assembled rotor with races, bearings, and grease seal installed
  • Pre-greased with Lucas Red 'N' Tacky grease
  • Integral hub/rotor combination is Galv-X coated to tough through marine environments both fresh water and salt water
  • Aluminum alloy a380 caliper dissipates heat up to five times faster than standard cast iron calipers and have an E-coat finish to protect from salt buildup
  • Slim caliper design permits short axle overhangs and faster cooling
  • Automotive quality ceramic brake pads with stainless steel backing plates for corrosion resistance
  • Bi-metal piston sheds braking heat five times faster than one piece stainless pistons through the combination of a stainless steel outer jacket and an anodized aluminum inner sleeve
  • Oversized rubber boot is 50% thicker by design and provides positive piston withdrawal
  • Non-corrodible oil impregnated bronze bushings last longer and work with corrosion resistant stainless steel caliper slider pins to provide smooth sliding
  • 7/16" hex head design of the slider pins allows for quick removal to make servicing the brakes easier
  • Type 304 stainless steel bleeder valves with Teflon coating allow for easy bleeding of the brake system
  • Grease cap with rubber plug allows for easy access to axles with zerk fittings for re-greasing
  • Fine thread slider pins


NOTE: This disc brake cannot be used with any electric-over-hydraulic actuators that produce more than 1,000 PSI.


Product Specifications:

  • Rotor Diameter: 9.6"
  • Replaces Rotor Size: 10" (46245)
  • Inner Bearing: 68149 (1 3/8")
  • Outer Bearing: 44649 (1 1/16")
  • Caliper: 46304
  • Mounting Bracket: 44676
  • Axle Rating: 3,500 lbs.
  • Bolt Pattern: 5 on 4 1/2"
  • Wheel Size: 13" - 15"
  • Rotor Thickness: 3/4"

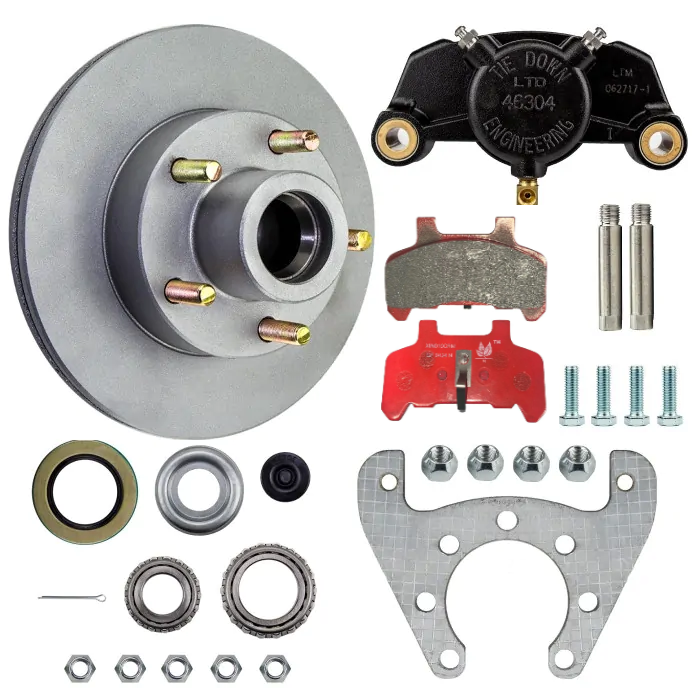

  • (1) GalvX coated rotor/hub
  • (1) Caliper
  • (1) Pair Brake Pads
  • (2) Slider pins
  • (1) Grease Seal
  • (1) Inner Bearing
  • (1) Outer Bearing
  • (1) Grease Cap with Rubber Plug
  • (1) Mounting bracket
  • Mounting bolts and 1/2" lug nuts


NOTE: Pads must be replaced when 3/32" (.094") or less of the pad friction material is left.


Dexter Marine/Tie Down Engineering Part Number: 82113
