Name: Trailer Axle - 2" Square - 3,500 lbs. Capacity - 1 1/16" x 1 3/8" Spindles - Galvanized
SKU: F3586G
Price: 401 USD
Availability: InStock

Trailer Axle - 2" Square - 3,500 lbs. Capacity - 1 1/16" x 1 3/8" Spindles - Galvanized

In stock

SKU F3586G

Price $401.00

Approximate Overall Length 86"

Hub Face 81 1/4"

Capacity 3,500 lbs.

Brand Dexter

Manufacturer Product # 49558

$401.00

Product Features:

Hot dipped galvanized beam to combat corrosion.

Straight axle design

Stainless steel wear sleeve on each spindle

Slight camber built into spindle welds.

Includes 2 castellated nuts, 2 washers, and 2 cotter pins.

Zerk fitting at end of spindles for easy bearing lubrication.

Pre-drilled 5/16" drain hole.

Hubs/drums sold separately

4-hole flanges for brake mounting; hubs/drums sold separately.

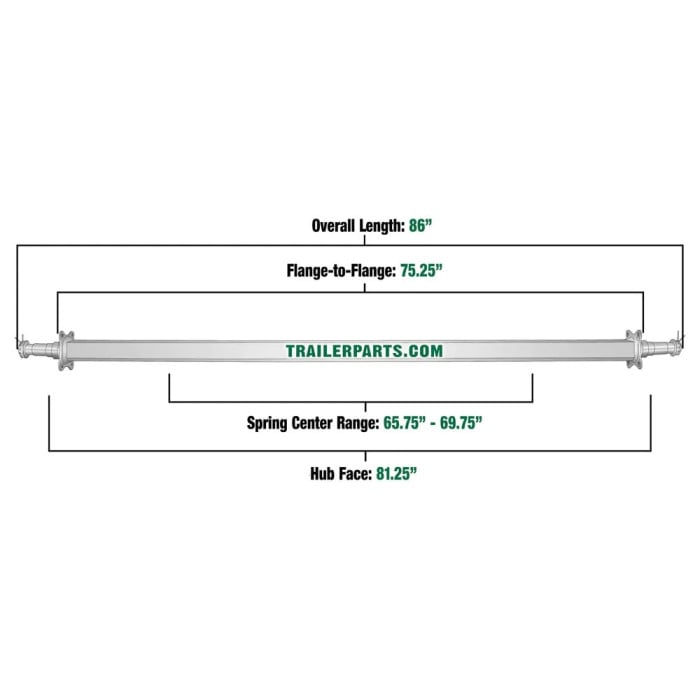

Product Specifications:

Capacity: 3,500 lbs.

Hub Face Measurement: 81.25"

Flange to Flange Measurement: 75.25"

Overall Length: 86"

Spring Center Range: 65.75" - 69.75"

Beam Size: 2" x 2" square

Spindle Size: 1 3/8" x 1 1/16" flared

Flange Hole Distance: 2 7/8" center-to-center

Hardware Information:

Inner Bearing: 68149 (1 3/8" inner dimension) (sold separately)

Outer Bearing: 44649 (1 1/16" inner dimension) (sold separately)

Grease Seal Inner Diameter: 1.72"

Note: This axle does not come pre-drilled for the springs to mount. It is recommended to use seats and stay within the manufacturer's spring center range to achieve full capacity. Deviating from this range may weaken the axle. Square seats do not need to be welded to the axle. Drilled axles cannot be returned for any reason.
