Hubs, Drums, Bearings, & Parts

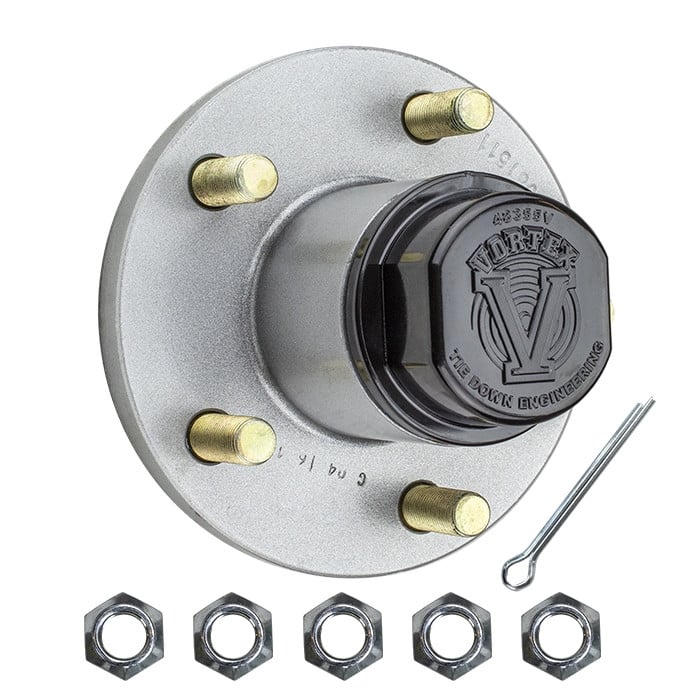

5 Bolt on 4 1/2" Vortex Hub with 1 1/16" Bearings (L44649) - Galv-X Finish

$68.22

Be the first to review this product

Availability: In stock

Item # 81012
Number of Bolts: 5 bolts
Bolt Circle: 5 on 4 1/2"
Capacity: 1,350 lbs.
Manufacturer / Brand: Tie Down Engineering
Manufacturer Product #: 81012

Additional Information

Product Features

Details

Tie Down Engineering has adapted the best features of grease and oil lubrication to develop the Vortex hub "no touch" system. The 81012 provides long term continuous bearing lubrication and ease of service or inspection. The Galv-X finish is a premium, non-rusting coating to protect the hub from corrosion. This hub is pre-greased and comes with the bearings, races, and grease seal installed.



Product Features:

  • Super strong threaded removable grease cap with O-ring
  • Cap design allows easy access to the spindle grease zerk fitting while maintaining a closed system
  • Vortex hubs are designed to be a no maintenance system lasting up to 100,000 miles or 6 years
  • Galv-X finish gives great protection against rust and corrosion making it an ideal option for marine applications
  • Pre-greased with Lucas Oil Marine grease
  • Lucas Oil Marine grease is a premium lithium based complex fortified with rust and oxidation inhibitors, high pressure additives and provides a high degree of moisture resistance and washout properties
  • Includes pre-pressed races, greased bearings, pre-pressed studs, and a flush pressed grease seal
  • Triple lipped, spring loaded grease seal provides a water tight fit
  • Fits onto standard small capacity axles with 1 1/16" straight spindles
  • Features an external grease zerk fitting on the back of the hub
  • No need for periodic regreasing or inspection, ultimately cutting down cost



NOTE: To maintain the factory warranty, Lucas Oil Marine grease must be used when adding replacing grease in the Vortex hub.



Product Specifications:

  • Individual Hub Capacity: 1,350 lbs.
  • Bolt Pattern: 5 on 4 1/2"
  • Hub Height: 4 1/8"
  • Inner Bearing (included): L44649 (1 1/16")
  • Outer Bearing (included): L44649 (1 1/16")
  • Grease Seal Inner Diameter: 1.25"
  • Grease Cap: 48355V



Includes:

  • (1) Vortex Hub, pre-greased and loaded
  • (1) Inner Bearing
  • (1) Outer Bearing
  • (1) Grease Seal
  • (1) Vortex Threaded Cap
  • (1) Cotter Pin
  • (5) Lug Nuts



NOTE: Caps with white "Vortex" lettering is no longer being manufactured by Tie Down Engineering



Tie Down Engineering/Dexter Marine of Georgia Part Number: 81012
