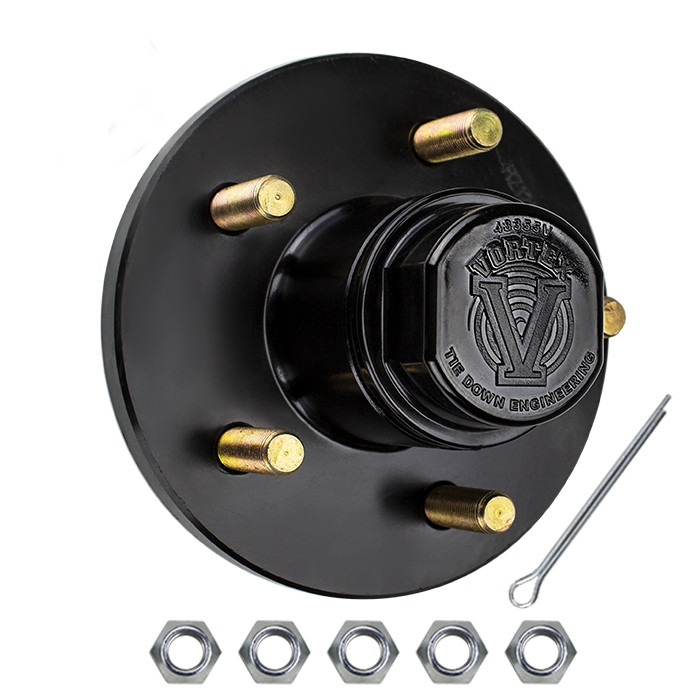

5 Bolt on 4 1/2" Vortex Hub with 1 1/16" (44649) Bearings - E-Coat Finish


Be the first to review this product

Availability: In stock

Item # 81017
Number of Bolts: 5 bolts
Bolt Circle: 5 on 4 1/2"
Capacity: 1,350 lbs.
Manufacturer / Brand: Tie Down Engineering
Manufacturer Product #: 81017

Additional Information

Product Features


Tie Down Engineering has adapted the best features of grease and oil lubrication to develop the Vortex hub; a worry free, "no touch" system. The 81017 provides long term continuous bearing lubrication and ease of service or inspection. This hub is pre-greased and comes with 1 1/16" bearings for straight spindle axles on small capacity trailers.


Product Features:

  • Super strong threaded removable grease cap with O-ring
  • Cap design allows easy access to the spindle grease zerk fitting while maintaining an air tight system
  • Vortex system is designed to be a no maintenance hub for 6 years
  • Pre-greased with Lucas Oil Marine grease
  • Lucas Oil Marine grease is a premium lithium based complex fortified with rust and oxidation inhibitors, high pressure additives and provides a high degree of moisture resistance and washout properties
  • Cast iron hub has an E-coated finish to help protect against rust and corrosion
  • Includes pre-pressed races, greased bearings, pre-pressed studs, and flush pressed grease seal
  • Triple lipped, spring loaded grease seal provides a tight fit on the spindle
  • Fits onto standard low capacity axles with 1 1/16" straight spindles
  • Hub features an external grease zerk fitting on the back for reagreasing when a spindle zerk is not present
  • No need for periodic regreasing or inspection


NOTE: To maintain the factory warranty, Lucas Oil Marine grease must be used when adding or replacing grease in the Vortex hub.


Product Specifications:

  • Individual Hub Capacity: 1,350 lbs.
  • Bolt Pattern: 5 on 4 1/2"
  • Hub Height: 4 1/8"
  • Inner/Outer Bearing (included): L44649 (1 1/16")
  • Grease Seal Inner Diameter: 1.25"
  • Grease Cap: 48355V



  • (1) Vortex Hub, Pre-greased and loaded
  • (1) Inner Bearing
  • (1) Outer Bearing
  • (1) Grease Seal
  • (1) Vortex Threaded Cap
  • (1) Cotter Pin
  • (5) Lug Nuts


NOTE: Caps with white "Vortex" lettering is no longer being manufactured by Tie Down Engineering.


Tie Down Engineering/Dexter Marine of Georgia Part Number: 81017
