Tie Down 9.6" Eliminator Tandem Axle Disc Brake Kit - 5 on 4 1/2" - Galv-X Coated Rotors

In stock

SKU F8242
Price $1,715.96
Number of Bolts 5
Brake Manufacturer Tie Down
Manufacturer Product # F8242
  $1,715.96


Description / Tie Down 9.6" Eliminator Tandem Axle Disc Brake Kit - 5 on 4 1/2" - Galv-X Coated Rotors

Tie Down Engineering's Eliminator series disc brakes feature a hub and rotor combination designed for marine use. The Galv-X coating protects against corrosion and rust, making these disc brakes an optimal choice for trailers. They offer reliable braking performance and self-adjustment. This kit outfits a trailer with disc brakes on two axles, replacing old drum brakes (electric or hydraulic) or adding brakes to idler hubs without additional purchases.



Hubs/Rotors

  • Pre-assembled rotors with races, bearings, and grease seals installed
  • Pre-greased with Lucas Red 'N' Tacky grease
  • Galv-X coated to prevent corrosion and rust
  • Easy lube grease cap with rubber plug for access to zerk fittings
    •

    Calipers

  • Aluminum alloy A380 caliper with E-coated finish
  • Slim caliper design for short axle overhangs and faster cooling
  • Automotive quality ceramic brake pads with stainless steel backing plates
  • Oversized rubber boot for positive piston withdrawal
  • Non-corrodible oil-impregnated bronze bushings
  • Type 304 stainless steel bleeder valves with Teflon coating
  • Fine thread, stainless steel slider pins
    •

    Mounting Brackets

  • Galv-X finish
  • Fits on 4-bolt axle flanges
    •

    Brake Lining

  • Includes all lining for a tandem axle braking system
  • 20' main line
  • Brass tees included
  • Clamps and ties included
  • Flexible rayon reinforced rubber lining
    •

    Actuator

  • Model 750E actuator
  • Cast ball clamp & extended latch lever
  • Zinc plated for protection
  • Built-in backup solenoid with cover
  • Heavy duty vinyl coated coiled emergency stop cable
    •

    Product Specifications

  • Rotor Diameter: 9.6"
  • Inner Bearing: 68149 (1 3/8")
  • Outer Bearing: 44649 (1 1/16")
  • Seal Inner Diameter: 1.72"
  • Bolt Pattern: 5 on 4 1/2"
  • Axle Rating: 3,500 lbs. per set
  • Actuator Coupler Size: 2"
  • Actuator Mounting: 3" wide trailer tongues
  • Actuator Capacity: 7,500 lbs.
    •

    Note: Brake pads must be replaced when friction material is 3/32" (.094") or less.

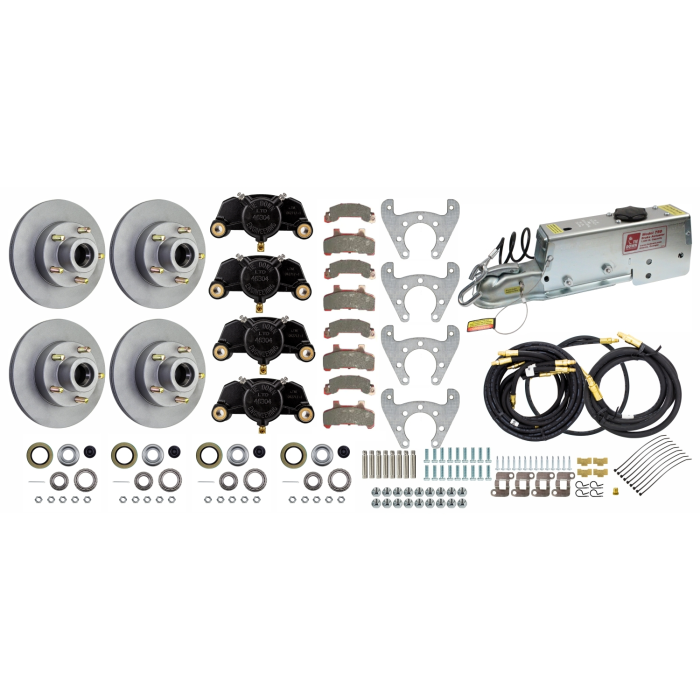

    Includes:

  • (4) Complete hub/rotor assemblies with all hardware
  • (4) Mounting brackets with hardware
  • (4) Calipers with slider pins
  • (1) Tandem axle brake line kit with 20' main line
  • (1) Model 750E actuator
