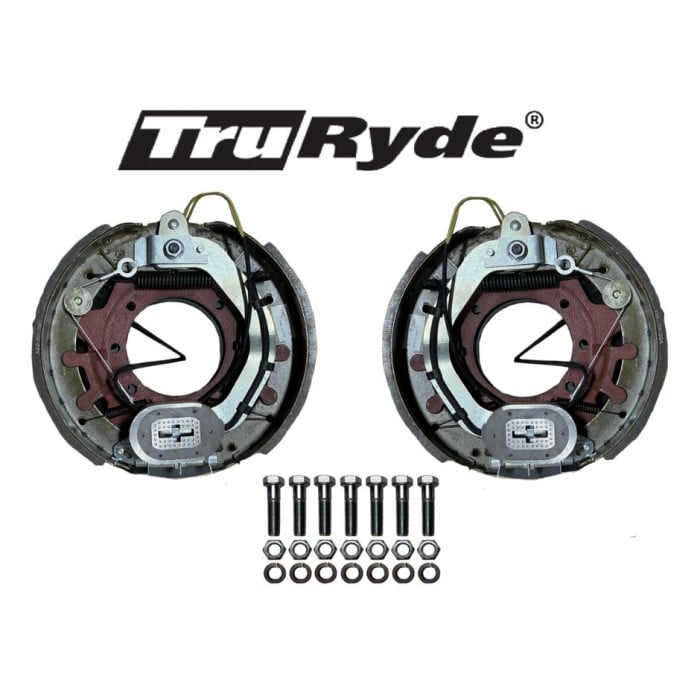

The F2355 by TruRyde is a 12.25" self-adjusting electric brake for heavier duty axles and applications. The cable and lever system automatically adjusts the shoes upon braking every time to ensure proper stopping power. Manual adjustments are not necessary. Either magnet wire can be used for ground or power supply.

Product Features:

• Complete brake assembly
• Loaded backing plate ready to mount
• Mounting hardware not included (See D17) *****
• Fits 9,000 to 10,000 lbs. axles with standard 7-hole mounting flanges
• Brake controller required for operation
• Electric brake system offers more user control compared to hydraulic systems
• Brake lines and brake actuator not needed
• Simple, quick installation
• Self-adjusting
• Shoes will automatically adjust every time braking is applied for optimal performance
• Non-polarized magnet allows either wire to be used as ground or power supply
• Pre-spliced wires for convenient installation
• Used 12.25" drums (sold separately)
• Manufactured in USA

Product Specifications:

• Brake Size: 12.25" x 3.375" (3 3/8")
• Individual Brake Capacity: 4,500 lbs. - 5,000 lbs.
• Axle Capacity: 9,000 lbs. - 10,000 lbs.
• Standard 7-Hole Flange
• Wheel Size: 15" and up
• Shoe Adjustment: Self-Adjusting

NOTE: Electric brakes should not be used for marine applications.
