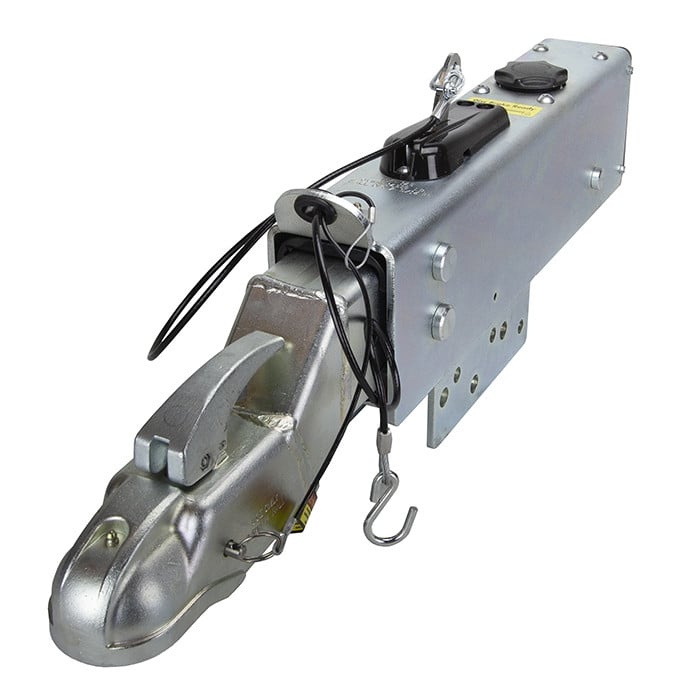

Name: Dexter (Tie Down) Model 16.5 Actuator - Disc Brakes - 16,500 lbs.
SKU: F70425
Price: 870.34 USD
Availability: InStock

Dexter (Tie Down) Model 16.5 Actuator - Disc Brakes - 16,500 lbs.

In stock

SKU F70425

Price $870.34

Capacity 16,500 lbs.

Finish Zinc Plated

Model 165

Brand Tie Down/Dexter

Manufacturer Product # 70425 | 099-302-2A

$870.34

Product Features:

High capacity, steel construction provides the strength necessary for medium duty and some heavy duty towing applications

Zinc plated finish helps protect the unit from rust and corrosion

Completely assembled and ready to bolt into place

Sits on top of a three inch wide straight trailer tongue

Low profile coupler helps keep the tongue level to the tow vehicle

Easy latch coupler mechanism provides quick and easy trailer hitching and unhitching

Heavy-duty vinyl coated coiled breakaway cable with S-hook attached to a breakaway lever

Breakaway system designed to operate after the trailer detaches from the tow vehicle during travel to engage the brakes

Supplied, cable tethered, safety pin

Reverse lock out solenoid included (F11286)

Mounting hardware not included

Brake fluid sold separately

NOTE: This actuator is designed to be used on trailers with disc brakes.

Product Specifications:

Model: TDE 16.5

Capacity: 16,500 lbs.

Maximum Tongue Weight: 1,6500 lbs.

Application: Disc Brakes

Mounting: 3" wide straight tongues

Installation: Bolt-on

Master Cylinder: 70403K

Coupler Size: 2 5/16" balls
