Name: Trailer Axle - Painted 2 3/8" Round - 3,500 lbs. Capacity - 1 3/8" x 1 1/16" Spindles - 69" Hub Face
SKU: 3574A
Price: 335 USD
Availability: InStock

Trailer Axle - Painted 2 3/8" Round - 3,500 lbs. Capacity - 1 3/8" x 1 1/16" Spindles - 69" Hub Face

In stock

SKU 3574A

Price $335.00

Approximate Overall Length 73 1/2"

Hub Face 69"

Capacity 3,500 lbs.

Brand Dexter

Manufacturer Product # 49930

Customizable Options:

Weld Spring Seats? *

Weld Axle Over Spring + $25.00

Weld Axle Under Spring + $25.00

Do Not Weld for Me - I Will Weld Seats Myself

Weld at (whole number)

Weld at (fraction)

$335.00

Product Features:

Black powder coat.

Includes 2 castellated nuts, 2 washers, and 2 cotter pins.

Zerk fitting at the end of spindles for easy bearing lubrication.

Spring seats come loose unless specified (welding extra); must be welded to the axle beam before installation.

Slight camber built into axle beam.

Hubs/drums sold separately

4-hole flanges

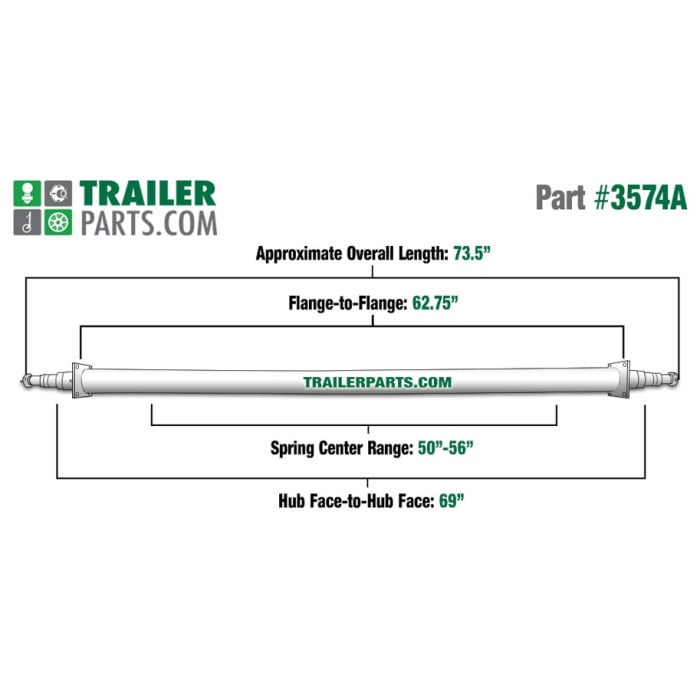

Product Specifications:

Capacity: 3,500 lbs.

Hub Face Measurement: 69"

Flange to Flange Measurement: 62.75"

Overall Length: 73.5"

Spring Center Range: 50" - 56"

Beam: 2 3/8" round.

Spindle: 1 3/8" x 1 1/16" flared.

Flange Hole Distance: 2 7/8" center-to-center.

Hardware Information:

Inner Bearing: 68149 (1 3/8" inner diameter) (sold separately)

Outer Bearing: 44649 (1 1/16" inner diameter) (sold separately)

Grease Seal Inner Diameter: 1.72"

Note: Welding is recommended only within the specified spring center range to avoid weakening or failure. Ensure the camber bow points up during installation for even tire wear.
