Axles

Painted 2 3/8" Round Trailer Axle - 3,500 lbs. Capacity with 1 3/8" x 1 1/16" Spindles - 65" Hub Face

More Views

$139.99

Be the first to review this product

Availability: In stock

* Required Fields

Item # 3570A
Approximate Overall Length: 69 1/2"
Hub Face: 65 1/4"
Capacity: 3,500 lbs.
Brand: Tie Down Engineering
Manufacturer Product #: 49929

Additional Information

Product Features

Details

The 3570A axle by Tie Down Engineering/Dexter Marine (manufacturer part number 49929) has a 3,500 lbs. capacity and a black powder coat finish to combat rust and corrosion. Commonly found on non-marine applications such as utility and landscaping trailers, this axle is typically used with idler hubs or 10" drum and brakes. Included with the axle is two loose spring seats, axle nuts, washers, and cotter pins. The spindles feature stainless steel wear sleeves and zerk fittings. These fittings allow bearing greasing via a grease gun without having to take off the wheel. This is best used with easy lube grease caps.



Product Features:

  • Black powder coat finish
  • Includes 2 castellated nuts, 2 washers, and 2 cotter pins
  • Zerk fitting at end of spindles for simple bearing lubrication
  • Fittings allows grease to easily flow to both the inner and outer bearings for a complete repack while purging contaminated grease without removing the hub
  • To be used with EZ-Lube caps
  • Comes with spring seats loose unless otherwise specified (welding is extra)
  • Seats must be welded to the axle beam prior to installation
  • Slight camber built into axle beam
  • Used for leaf spring suspension systems
  • 4-hole flanges for brake mounting
  • Hubs/drums sold separately

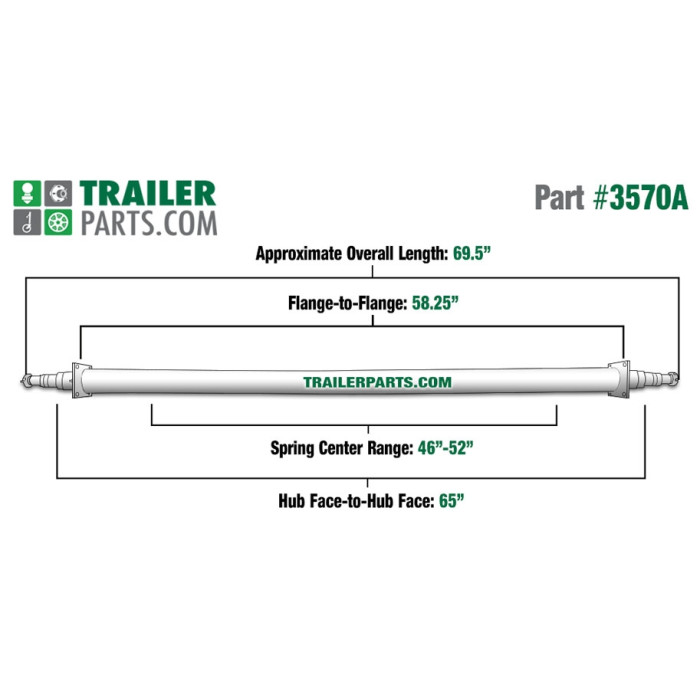

Product Specifications:

  • Capacity: 3,500 lbs.
  • Hub Face Measurement: 65"
  • Flange to Flange Measurement: 58.25"
  • Overall Length: 69.5"
  • **Spring Center Range: 46" - 52"
  • Beam: 2 3/8" Round
  • Spindle: 1 3/8" x 1 1/16" flared
  • Flange Hole Distance: 2 7/8" center-to-center



**The spring center range is measured from the center of one spring or spring seat to the center of the opposite spring or spring seat.



Hardware Information:

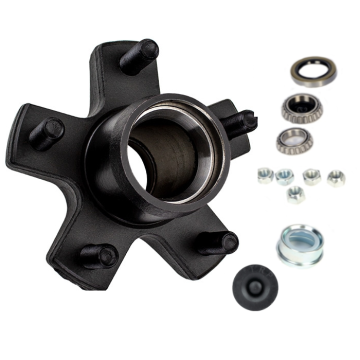

  • Inner Bearing (sold separately): 68149 (1 3/8" inner diameter)
  • Outer Bearing (sold separately): 44649 (1 1/16" inner diameter)
  • Grease Seal Inner Diameter: 1.72"



NOTE: We will only weld within the recommended spring center range provided by the manufacturer. Going inside or outside of this range may cause the strength of the axle to lessen or even cause a complete axle failure. Welded axles are non-returnable for any reason. When installing the axle, make sure that the camber bow is pointing up. This camber is designed to deflect the weight of the load once weight is applied to the trailer, essentially straightening out the axle to prevent uneven tire tread wear.



Tie Down Engineering/Dexter Marine of Georgia Part Number: 49929
