Dexter 12" x 2" Electric Trailer Brake - Right Hand (Passenger's Side) - 7,000 lbs. Axle Capacity -023-181-00

Dexter 12" x 2" Electric Trailer Brake - Right Hand (Passenger's Side) - 7,000 lbs. Axle Capacity

In stock

SKU 23-181
Price $102.51
Item 23-181
Size 12" x 2"
Position Right
Axle Capacity 7,000 lbs.
Brake Manufacturer Dexter
Manufacturer Product # K23-181-00

Description / Dexter 12" x 2" Electric Trailer Brake - Right Hand (Passenger's Side) - 7,000 lbs. Axle Capacity -023-181-00

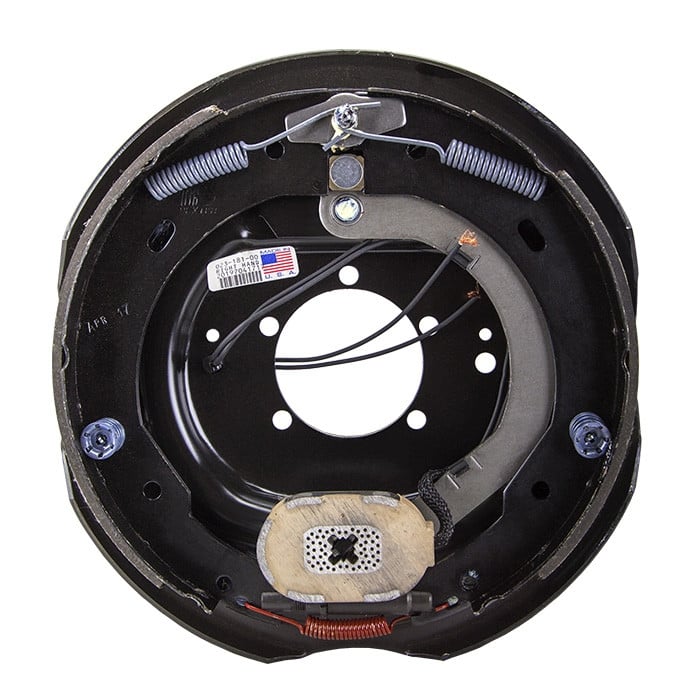

The 23-181 electric brake by Dexter Axle is a 12" x 2" drum brake with a stronger magnet for increase weight capacity. This is indicated by the black colored wire as compare to a white one of the same brake size. The wires are pre-spliced and the magnet is non-polarized so either wire can be used for either ground or power. The brake is complete and readily able to mount on a standard 5 hole axle flange.



Product Features:

  • One right hand brake assembly (left hand sold separately)
  • Complete electric brake assembly ready to be mount
  • Fits 7,000 lbs. axles
  • Electric braking system requires brake controller (not included)
  • Actuator and hydraulic brake lines are not needed
  • Electric brake systems give the user more control as compared to hydraulic brake systems
  • Manual shoe adjustment
  • 5-hole flange takes 3/8" bolts and nuts (not included)
  • Non-polarized magnet allows either wire to be used as ground or power supply
  • Pre-spliced magnet wires
  • Used with 12" drums
  • Manufactured in USA



Product Specifications:

  • Brake Size: 12" x 2"
  • Brake Alignment: Right Hand - Passenger Side
  • Individual Brake Capacity: 3,500 lbs. (Black wire)
  • Axle Capacity: 7,000 lbs.
  • Standard 5-Hole Flange
  • Wheel Size: 14 1/2" - 16"
  • Shoe Adjustment: Manual



NOTE: Electric brakes should not be used for marine applications.



Dexter Part Number: 23-181 (023-181, K23-181)
