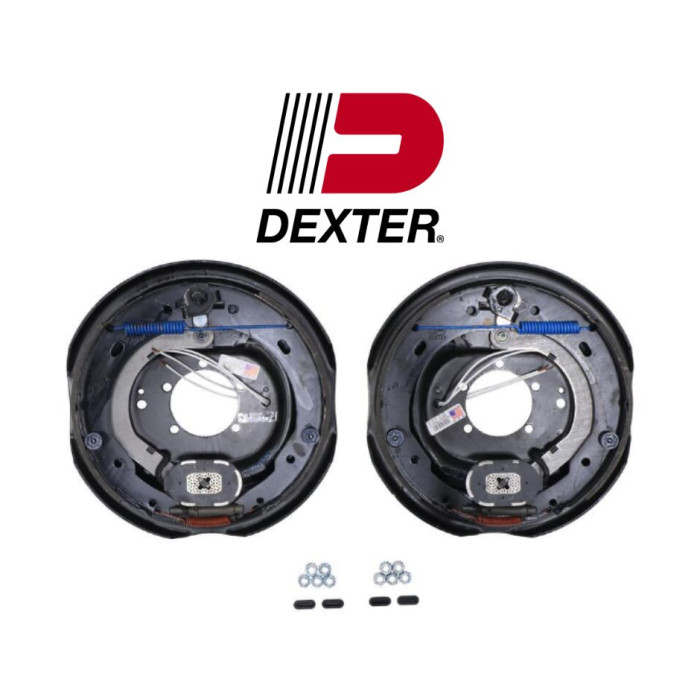

Electric Trailer Brake Kit w/ Park Brake - 12" x 2" - 6,000 lbs.

In stock

SKU F2346
Price $265.65
Size 12" x 2"
Position Pair
Axle Capacity 6,000 lbs.
Brake Manufacturer Dexter
Manufacturer Product # 23-112 (L), 23-113 (R)
  $265.65


Description / Electric Trailer Brake Kit w/ Park Brake - 12" x 2" - 6,000 lbs.

F2346 brake kit (w/ white wire) assembled with Dexter part # 023-112-000 L and 023-113-000 R is good for one 6,000 lb. axle with a standard 5-hole flange. The kit includes both the left hand and right hand electric brake assemblies with the necessary mounting hardware and a parking brake.



Product Features:

  • One left hand side brake assembly and one right hand side brake assembly
  • One kit is good to outfit one axle with brakes
  • Loaded backing plates are ready to mount
  • Mounting hardware included
  • Fits up to 6,000 lbs. axles
  • Electric brake systems provide more user control via an in-cab brake controller
  • Simple installation compared to hydraulic brakes
  • Actuator and brake lines not needed
  • Manual shoe adjustment
  • Access points the shoe adjuster are located on the back of the brakes
  • Non-polarized magnet allows either wire to be used as ground or power supply
  • Pre-spliced wires for convenience
  • Used with 12" drums (not included)

    •

    Product Specifications:

  • Brake Size: 12" x 2"
  • Brake Alignment: Left and Right Hand
  • Individual Brake Capacity: 3,000 lbs.
  • Axle Capacity: 6,000 lbs.
  • Standard 5-hole mounting pattern
  • Wheel Size: 14 1/2" - 16"
  • Shoe Adjustment: Manual

    •

    One Kit Includes:

  • (1) Complete 12" left hand electric brake assembly
  • (1) Complete 12" right hand electric brake assembly
  • (10) 3/8"-16 replacement bolts and nuts
  • (10) 3/8"-24 nuts for axles that have pre-pressed flange bolts

    •

    NOTE: Electric brakes should not be used on marine applications.
