Tie Down Engineering 12" Integral Disc Brake Assembly - 6 on 5 1/2" - Galv-X Coated Rotors

Free Shipping
$195.49

Be the first to review this product

Availability: In stock

Item # 82100
Number of Bolts: 6
Brake Manufacturer: Tie Down Engineering
Manufacturer Product #: 82100

Additional Information

Product Features

Details

This kit by Tie Down Engineering comes with all components necessary to outfit one wheel with a disc brake system. The integral one piece rotor/hub unit will provide the cool running benefits of a vented disc rotor and a cast aluminum caliper. The Galv-X coating provides added protection from rust and corrosion from salt.



Product Features:

  • Universal (left or right)
  • Pre-assembled rotor with races, bearings, and grease seal installed
  • Pre-greased with Lucas Red 'N' Tacky grease
  • Integral hub/rotor combination is Galv-X coated to tough through both fresh water and salt water marine applications
  • Aluminum alloy a380 caliper dissipates heat up to five times faster than standard cast iron calipers and have an E-coat finish to protect from salt buildup
  • Slim caliper design permits short axle overhangs and faster cooling
  • Automotive quality ceramic brake pads with stainless steel backing plates for corrosion resistance
  • Bi-metal piston sheds braking heat five times faster than one piece stainless pistons through the combination of a stainless steel outer jacket and an anodized aluminum inner sleeve
  • Oversized rubber boot is 50% thicker by design and provides positive piston withdrawal
  • Non-corrodible oil impregnated bronze bushings last longer and work with corrosion resistant stainless steel slider pins to provide smooth sliding
  • 7/16" hex head slider pins allow quick removal for servicing
  • Type 304 stainless steel bleeder valves with Teflon coating allow for easy bleeding of the brake system
  • Grease cap with rubber plug permits easy access to axles with zerk fittings for re-greasing
  • Fin thread slider pins



NOTE: Tie Down disc brakes cannot be used with any electric-over-hydraulic actuators that produce more than 1,000 PSI.



Product Specifications:

  • Rotor Diameter: 12"
  • Inner Bearing: 25580 (1 3/4")
  • Outer Bearing: 15123 (1 1/4")
  • Seal Inner Diameter: 2.25"
  • Caliper: 46304
  • Mounting Bracket: 44478
  • Axle Rating: 6,000 lbs.
  • Bolt Pattern: 6 on 5 1/2"
  • Wheel Size: 15" and up

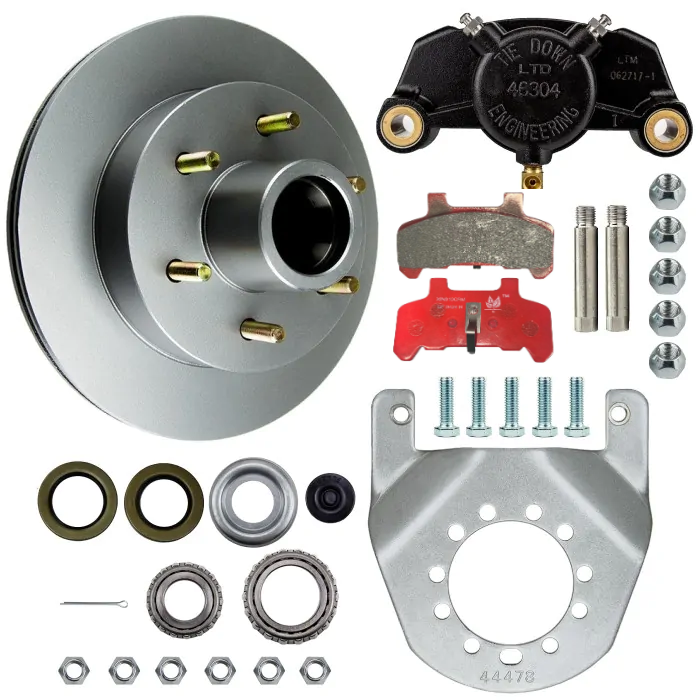

Includes:

  • (1) GalvX coated rotor/hub
  • (1) Caliper
  • (1) Pair Brake Pads
  • (2) Slider pins
  • (1) Grease Seal
  • (1) Inner Bearing & Race
  • (1) Outer Bearing & Race
  • (1) Grease Cap with Rubber Plug
  • (1) Mounting bracket
  • Mounting bolts and 1/2" lug nuts



NOTE: Pads must be replaced when 3/32" (.094") or less of the pad friction material is left.



Tie Down Engineering/Dexter Marine of Georgia Part Number: 82100
