Galvanized 2" x 3" Square Trailer Axle - 5,200 lbs. Capacity with 1 3/4" x 1 1/4" Spindles - 2" Drop - 87.75" Hub Face

In stock

SKU 52294A
Price $418.62
Item 52294A
Approximate Overall Length 93 1/4"
Hub Face 87 3/4"
Capacity 5,200 lbs.
Brand Tie Down Engineering
Manufacturer Product # 49858

Description / Galvanized 2" x 3" Square Trailer Axle - 5,200 lbs. Capacity with 1 3/4" x 1 1/4" Spindles - 2" Drop - 87.75" Hub Face

The 52294A galvanized drop axle by Tie Down Engineering/Dexter Marine (manufacturer part number 49858) has a 5,200 lbs. capacity and pre-drilled spring holes. Dropped axles, also known as axles with a stepped spindle, will lower the deck of the trailer. The galvanized finish and pressed stainless steel wear rings provide lasting corrosion resistance from the elements. A slight camber, or offset, is present on either spindle to allow even tire tread wear when weight is applied. 5 hole flanges behind the spindles allow brake installation.



Product Features:

  • Hot dipped galvanized beam to combat corrosion
  • Galvanized axles will last much longer than painted ones and are perfect for marine applications
  • Features a stainless steel wear sleeve on either spindle
  • Slight camber built into spindle welds
  • Used for leaf spring suspension systems
  • Includes 2 castellated nuts, 2 washers, and 2 cotter pins
  • Pre-drilled 5/16" drain hole
  • 5-hole flanges for brake mounting
  • Hubs/drums sold separately

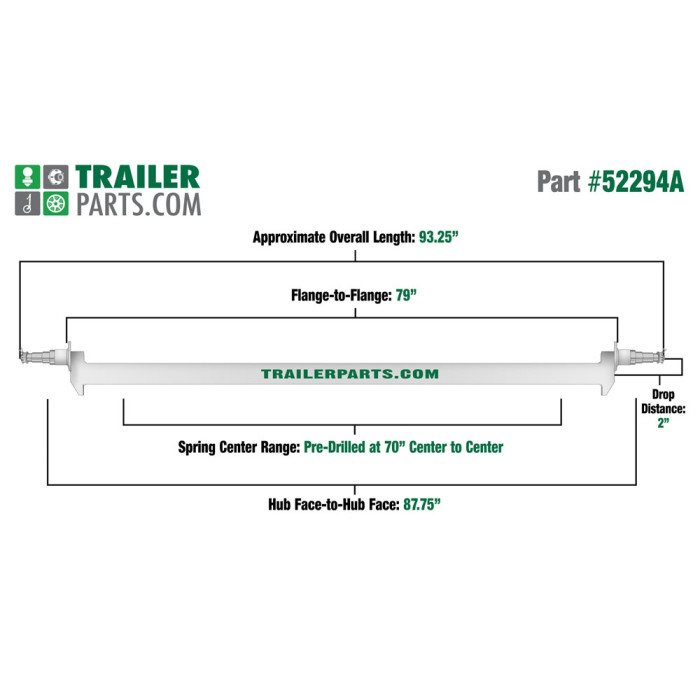

Product Specifications:

  • Capacity: 5,200 lbs.
  • Hub Face Measurement: 87.75"
  • Flange to Flange Measurement: 79"
  • Overall Length: 93.25"
  • Spring Center: Pre-drilled at 70" center to center
  • Beam: 2" x 3" Square
  • Spindle: 1 3/4" x 1 1/4" flared
  • Spindle Drop Distance: 2"
  • Standard 5 Hole Flange



Hardware Information:

  • Inner Bearing (sold separately): 25580 (1 3/4" inner dimension)
  • Outer Bearing (sold separately): 15123 (1 1/4" inner dimension)
  • Grease Seal Inner Diameter: 2.25"



Tie Down Engineering/Dexter Marine of Georgia Part Number: 49858

Related Products

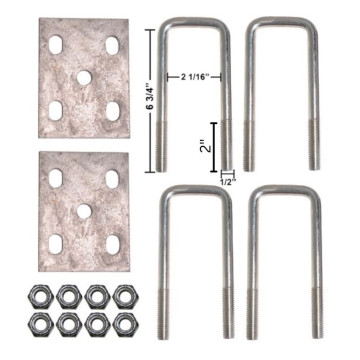

Fits 2" x 3" Drop Axle - Trailer U-Bolt Kit - U-Bolts Zinc Plated - Plates Galvanized
$32.49
Axle Spring Seats (Galvanized) for 2" Square Axles
$4.90

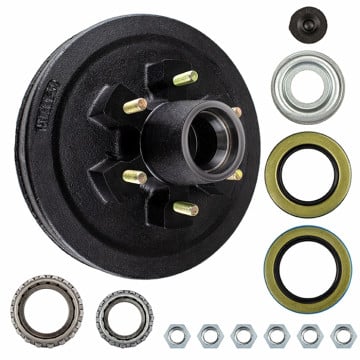

Dexter 12" x 2" Brake Drum - 6 on 5 1/2" with 1 3/4" x 1 1/4" Bearings (25580 x 15123) - 1/2" Studs
