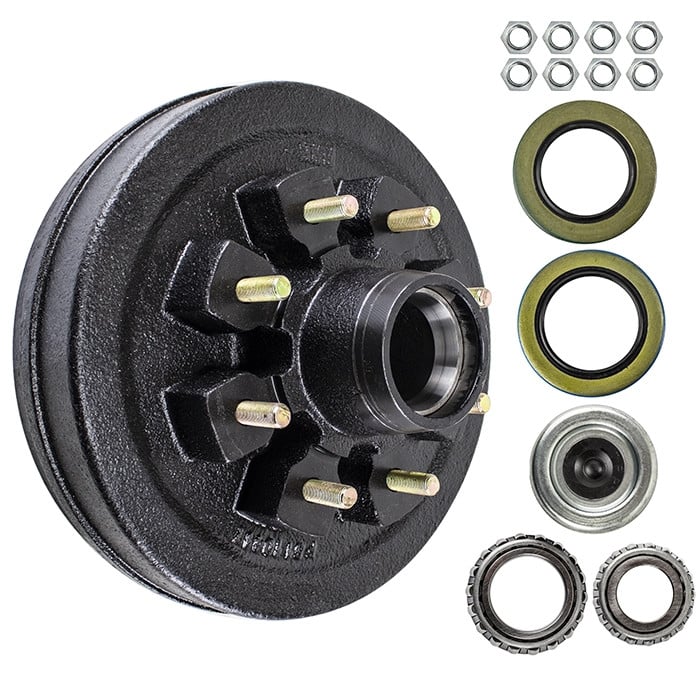

Name: Brake Drum - 12" x 2" - 8 on 6 1/2"
SKU: F865D-IMP
Price: 127.89 USD
Availability: InStock

Brake Drum - 12" x 2" - 8 on 6 1/2"

In stock

SKU F865D-IMP

Price $127.89

Drum Size 12" x 2"

Number of Bolts 8 Bolt

Bolt Pattern 8 on 6 1/2"

Inner Bearing 25580

Outer Bearing 14125A

Bolt Size 1/2"

Manufacturer / Brand UCF - The Universal Group LLC

Manufacturer Product # BD-128650

$127.89

Product Features:

Applicable with 12" electric or hydraulic drum brake assemblies

Integral cast iron hub and drum combination

Pre-pressed races and studs

Bearings, grease seals, EZ Lube grease cap, and lug nuts included

Grease cap design when used in tandem with zerk fitted axles allows for easy and convenient drum re-greasing

Double lipped, spring loaded grease seals deters debris from entering the drum

Commonly used on 5,200 lbs. to 7,000 lbs. axles

Grease sold separately

Product Specifications:

Applicable Brake Dimensions: 12" x 2"

Bolt Pattern: 8 on 6 1/2"

Stud Diameter: 1/2"

Individual Drum Capacity: 3,500 lbs.

Wheel Size: 16" - 17 1/2"

Hardware Specifications:

Inner Bearing: 25580 (1 3/4")

Outer Bearing: 14125A (1 1/4")

Grease Seal Inner Diameter: 2.12" & 2.25"

Grease Seal Outer Diameter: 3.37"

Grease Cap: 2.72"

Lug Nuts: 1/2"-20

NOTE: This drum includes 2 grease seals with different inner diameters to accommodate most common axle spindles. Check which grease seal will fit the axle before installation.

Includes:

(1) 8 Bolt Drum

(1) Inner Bearing

(1) Outer Bearing

(2) Grease Seals

(1) EZ Lube Grease Cap with Rubber Plug

(8) Lug Nuts

UCF - The Universal Group Part Number: BD-128650
