Name: Dexter Trailer Axle - 100" - 3" Round - 7,000 lbs. Capacity - 4" Drop - Includes Spindle Hardware & Spring Seats
SKU: 47104A
Price: 706 USD
Availability: InStock

Dexter Trailer Axle - 100" - 3" Round - 7,000 lbs. Capacity - 4" Drop - Includes Spindle Hardware & Spring Seats

In stock

SKU 47104A

Price $706.00

Approximate Overall Length 100 1/2"

Hub Face 95"

Capacity 7,000 lbs.

Brand Dexter

Manufacturer Product # 11535275

Customizable Options:

Weld Spring Seats? *

Weld Axle Under Spring + $25.00

Weld Axle Over Spring + $25.00

Do Not Weld for Me - I Will Weld Seats Myself

Weld at (whole number)

Weld at (fraction)

$706.00

Product Features:

Black powder coat finish.

Includes 2 axle jam nuts, 2 flat notch washers, and 2 axle nut retainers.

Zerk fitting at end of spindles for simple bearing lubrication.

To be used with EZ-Lube caps.

Spring seats come loose unless otherwise specified (welding extra); seats must be welded to the axle beam prior to installation.

Slight camber built into axle beam.

Hubs/drums sold separately.

Brake Mounting: 5-hole flanges for brake mounting

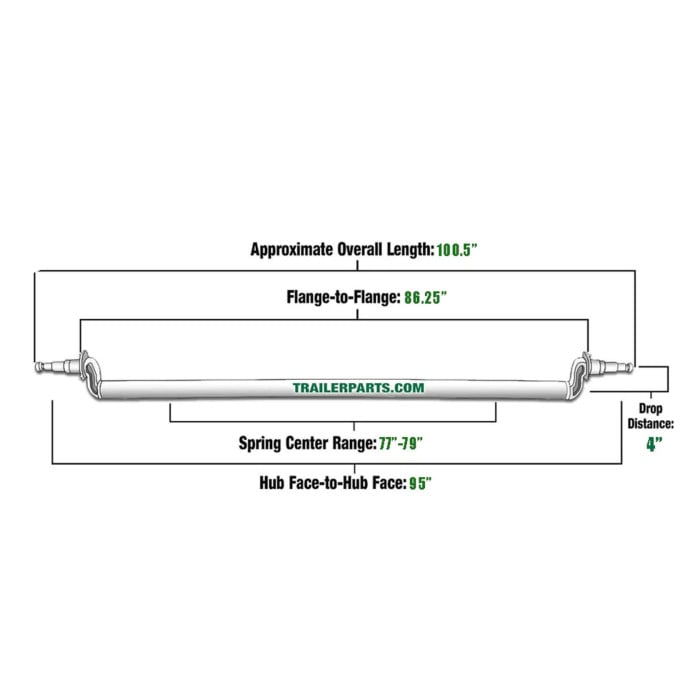

Product Specifications:

Capacity: 7,000 lbs.

Hub Face Measurement: 95"

Flange to Flange Measurement: 86.25"

Overall Length: 100.5"

Spring Center Range: 77" - 79"

Beam: 3" Round.

Spindle: 1 3/4" x 1 1/4" flared.

Spindle Drop Distance: 4".

Flange Type: Standard 5 hole flanges.

Hardware Information:

Inner Bearing: 25580 (1 3/4" inner diameter) (sold separately)

Outer Bearing: 15123, 67048, 14125 (1 1/4" inner diameter) (sold separately)

Grease Seal Inner Diameter:2.25".

Note: Welding is permitted only within the recommended spring center range provided by the manufacturer. Going inside or outside of this range may weaken the axle, potentially leading to failure. Welded axles are non-returnable. When installing the axle, ensure the camber bow is pointing up to promote even tire tread wear.
